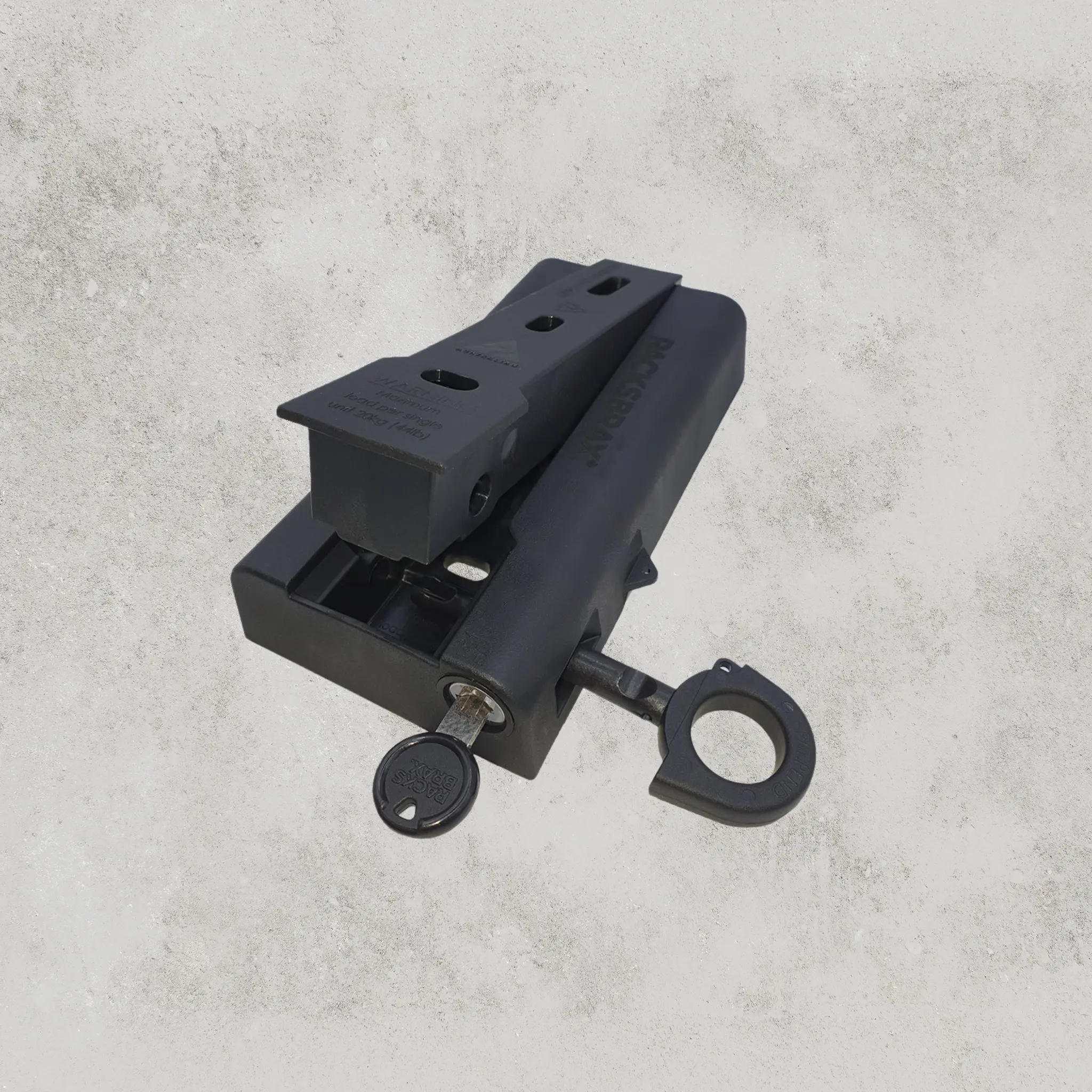

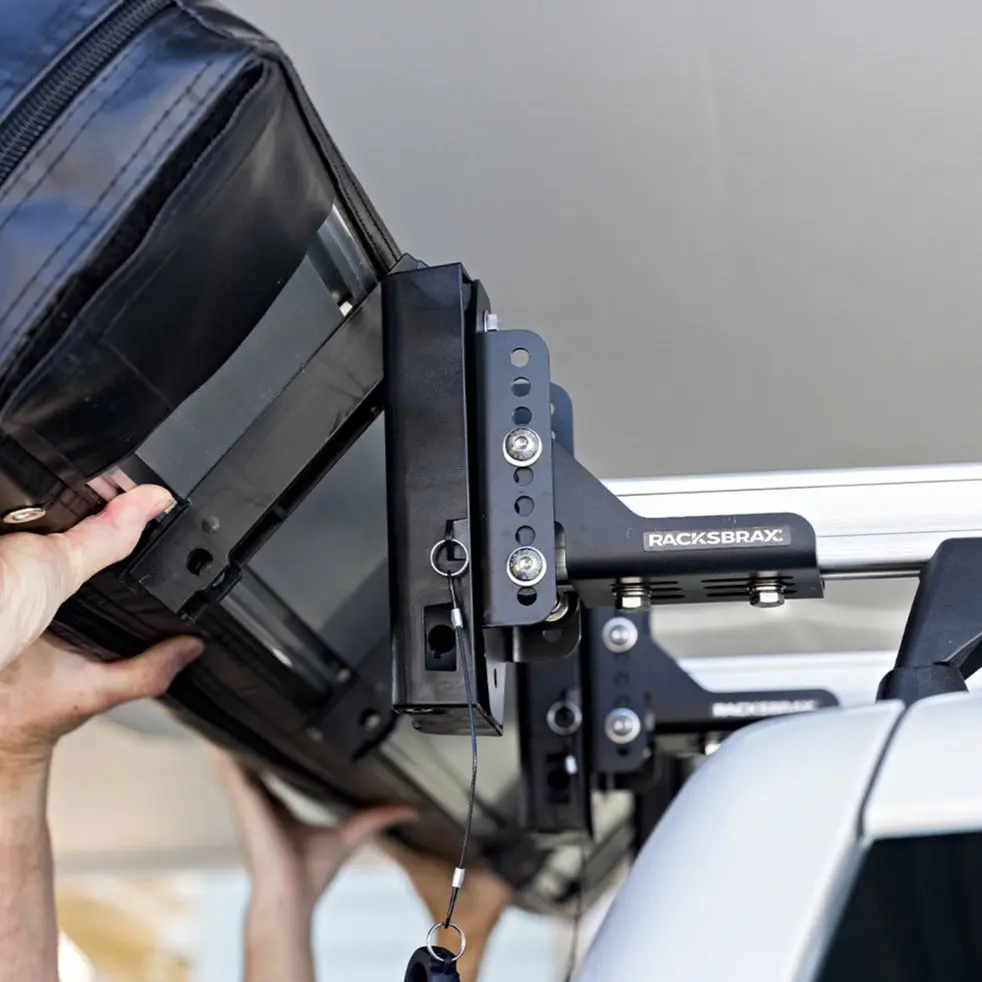

The XD Hitch (Double, Triple) (9000, 9001) (pat. pend) is part of our RacksBrax XD range and is now supplied as a complete kit with the XD Multi-Awn Adaptor, expanding compatibility across a wider range of awnings.

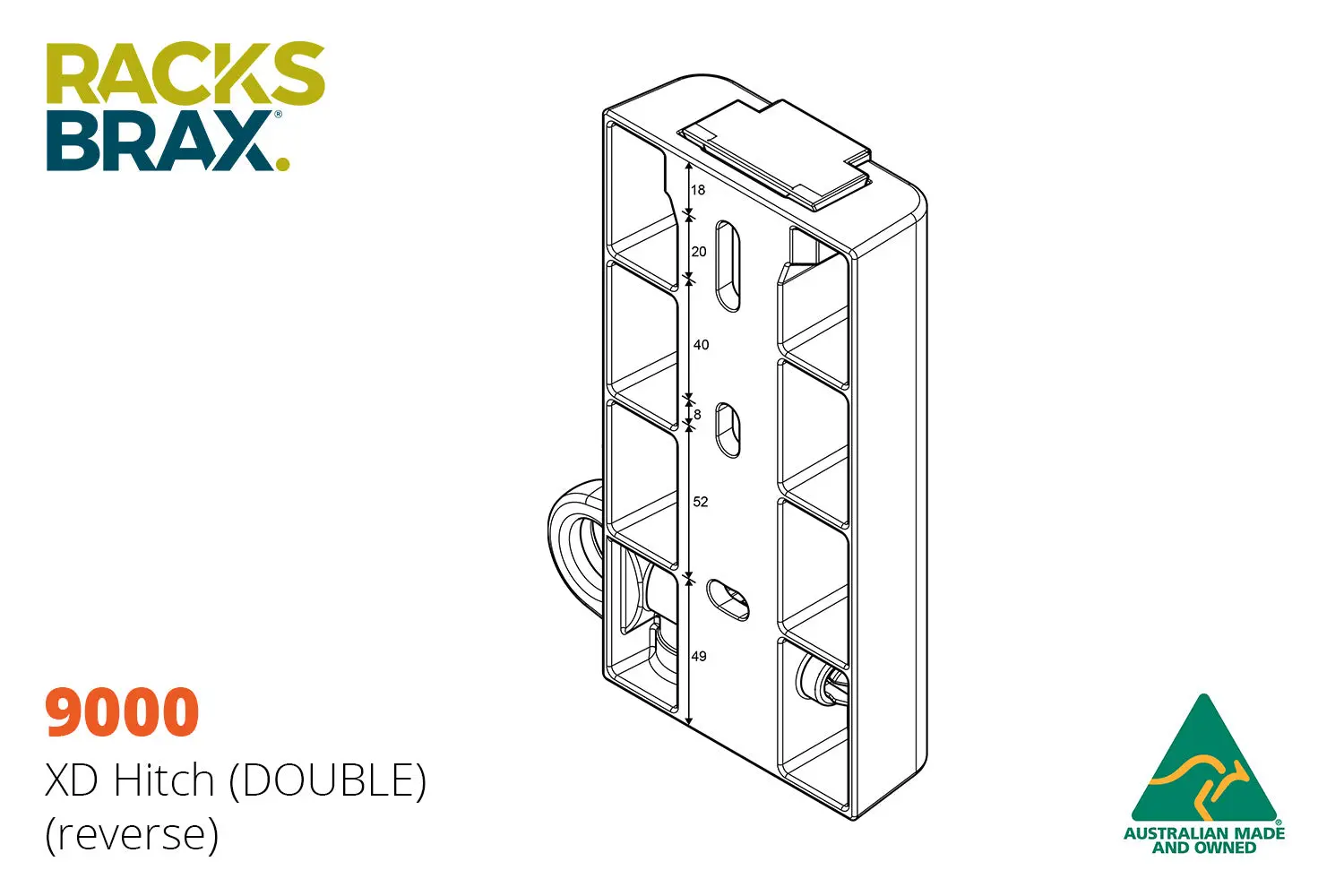

The XD Hitch (Double) (9000) is ideal for:

  - Wing-style awnings with spine track spacings between 100-120mm
  - 2 mounting points (e.g. 1 vehicle + 1 awning/accessory)
  - Awnings with a max. load of 40kg (i.e. 20kg x 2 loading points)

The XD Hitch (Double) (9000) will fit most wing awnings (see our Works With page to find your brand of awning or accessory). If your awning does not appear in our chart, please feel free to reach out to the Team via our Contact page.

-

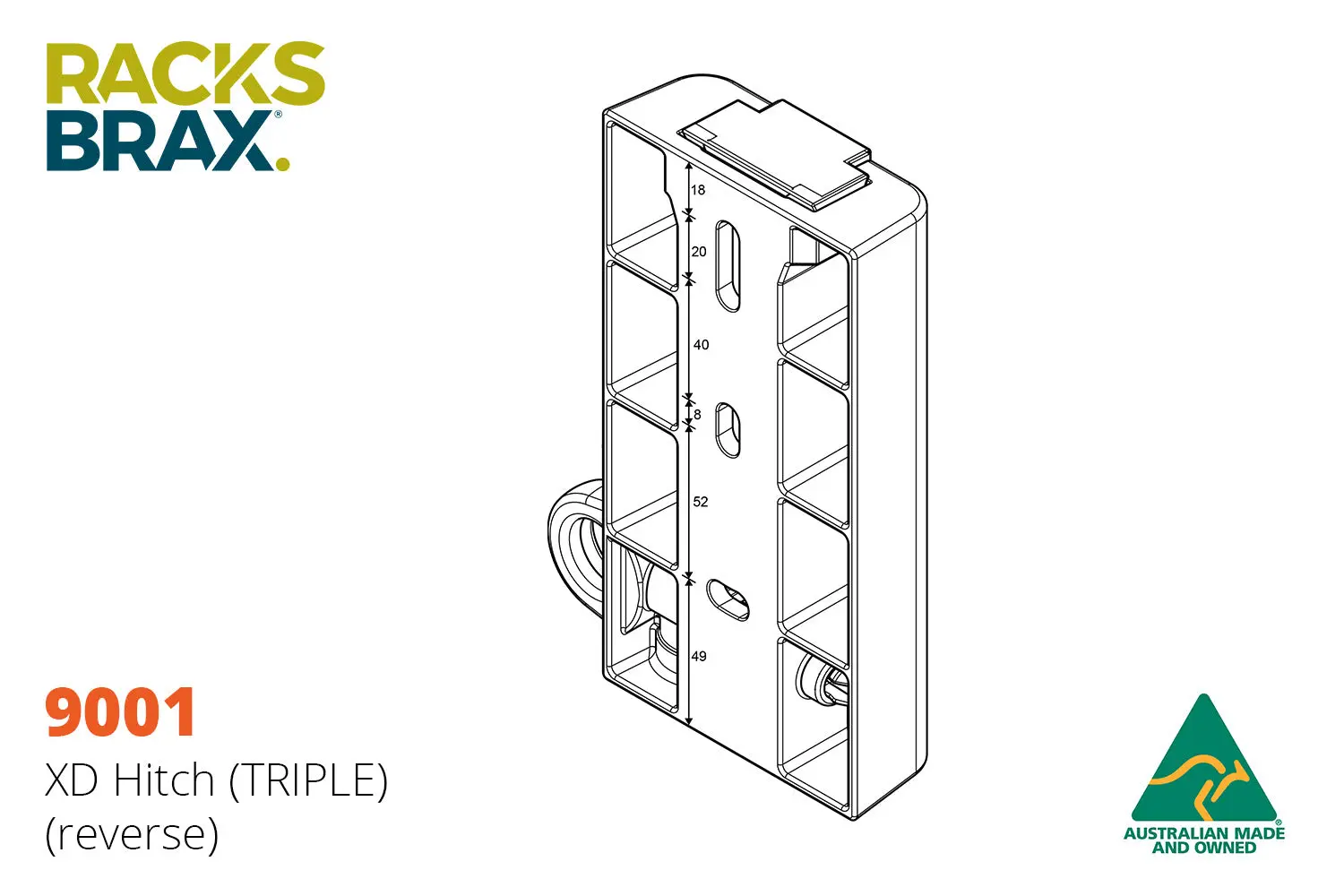

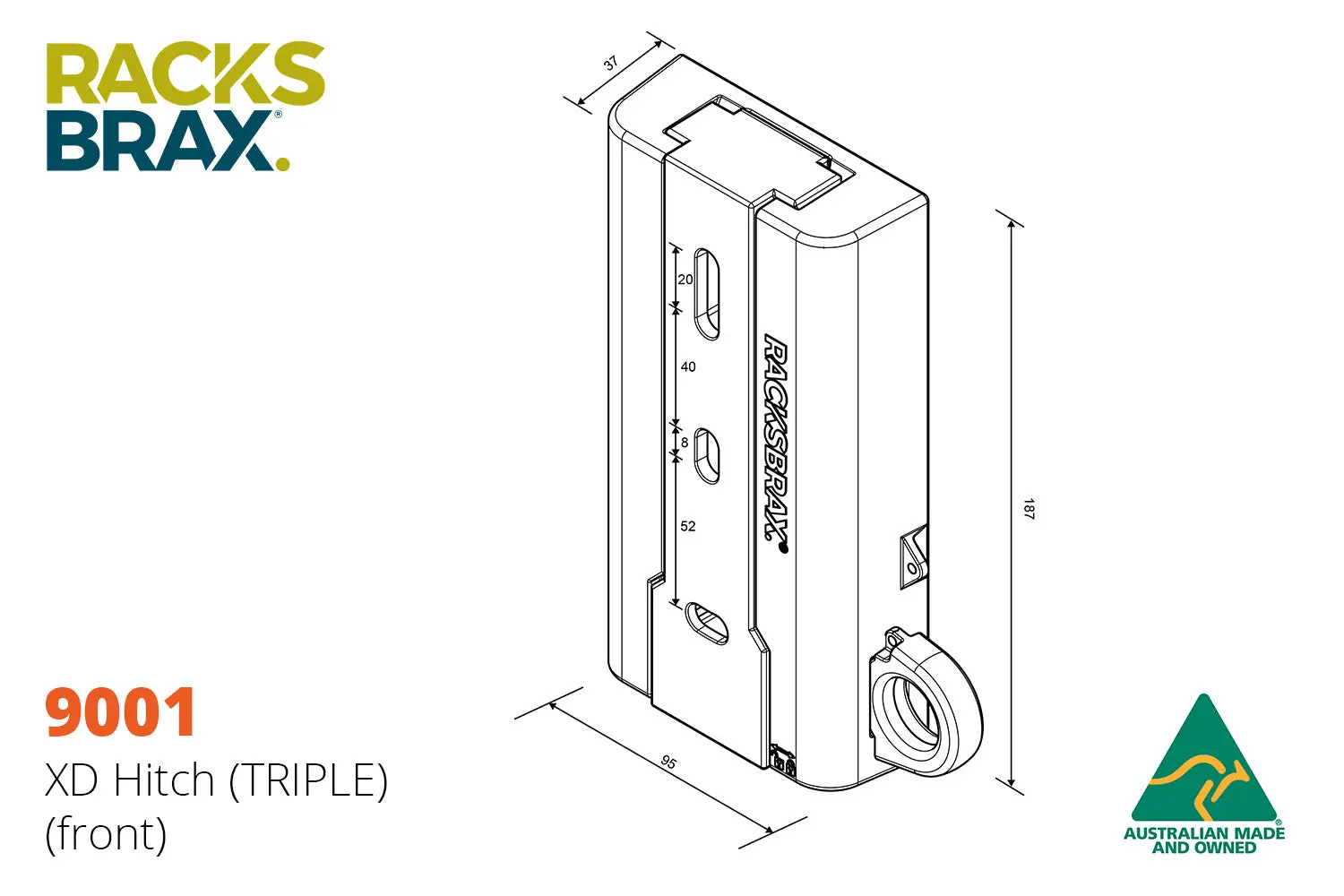

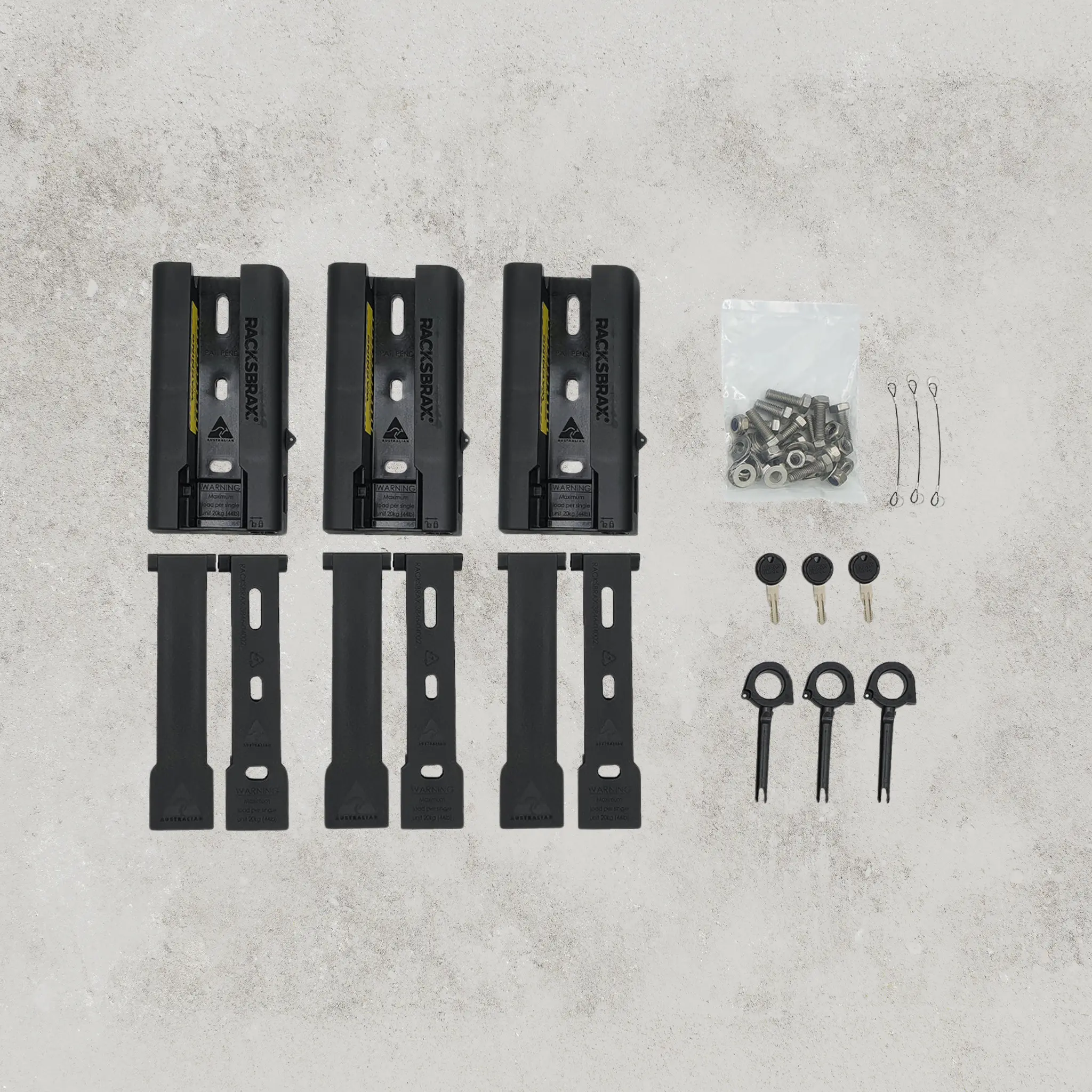

The XD Hitch (Triple) (9001) is ideal for:

  - Wing-style awnings with spine track spacings between 100-120mm
  - 3 mounting points (e.g. 1 vehicle + 1 awning/accessory)
  - Awnings with a max. load of 60kg (i.e. 20kg x 3 loading points)

-

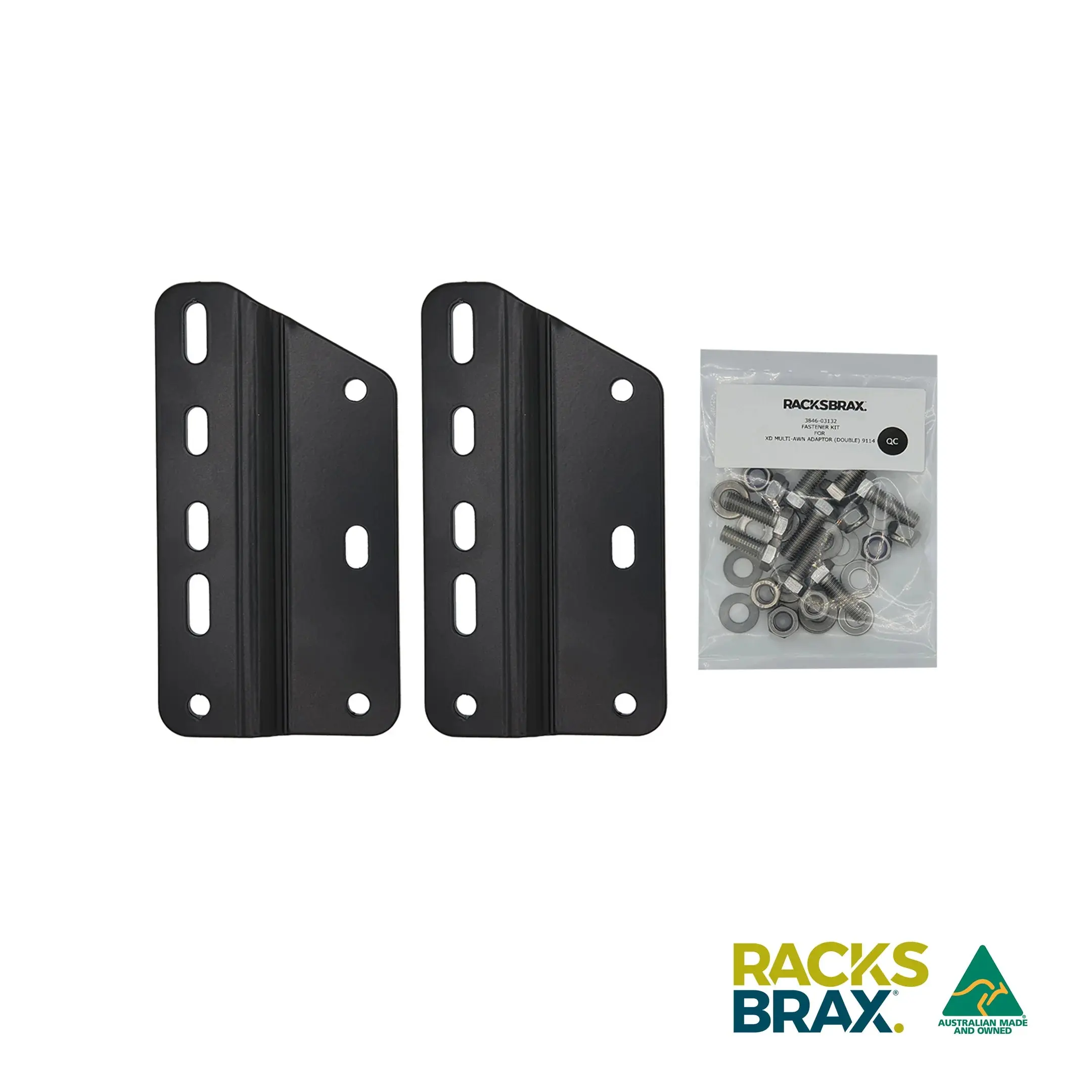

XD Multi-Awn Adaptor (Included in Kit)

The included XD Multi-Awn Adaptor is engineered to extend the compatibility of the XD Hitch, allowing it to suit a broader range of roof rack mounted 180°, 270° and 360° wing-style awnings.

It accommodates awnings with spine spacings that fall outside the standard 100-120mm centres that the XD Hitch is typically designed for.

Typical mounting spacings supported include:

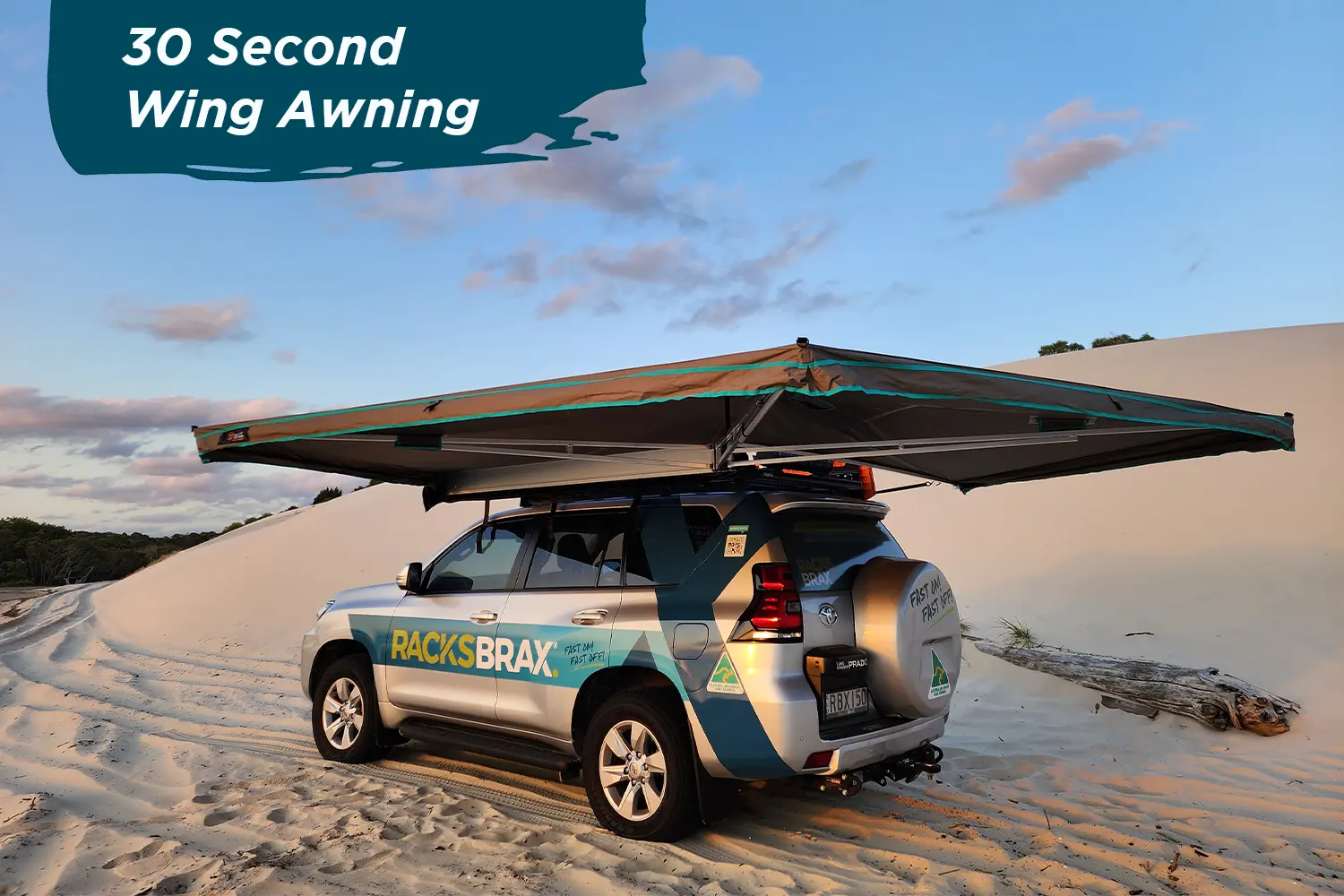

  - 135mm (30 Second awnings)
  - 150mm spacing
  - Awnings with 4 mounting points (including Bushwakka® range and SUPA PEG 270 Outbound Shield 6)

Important: Awnings must not have mounting point spacings less than 65mm.

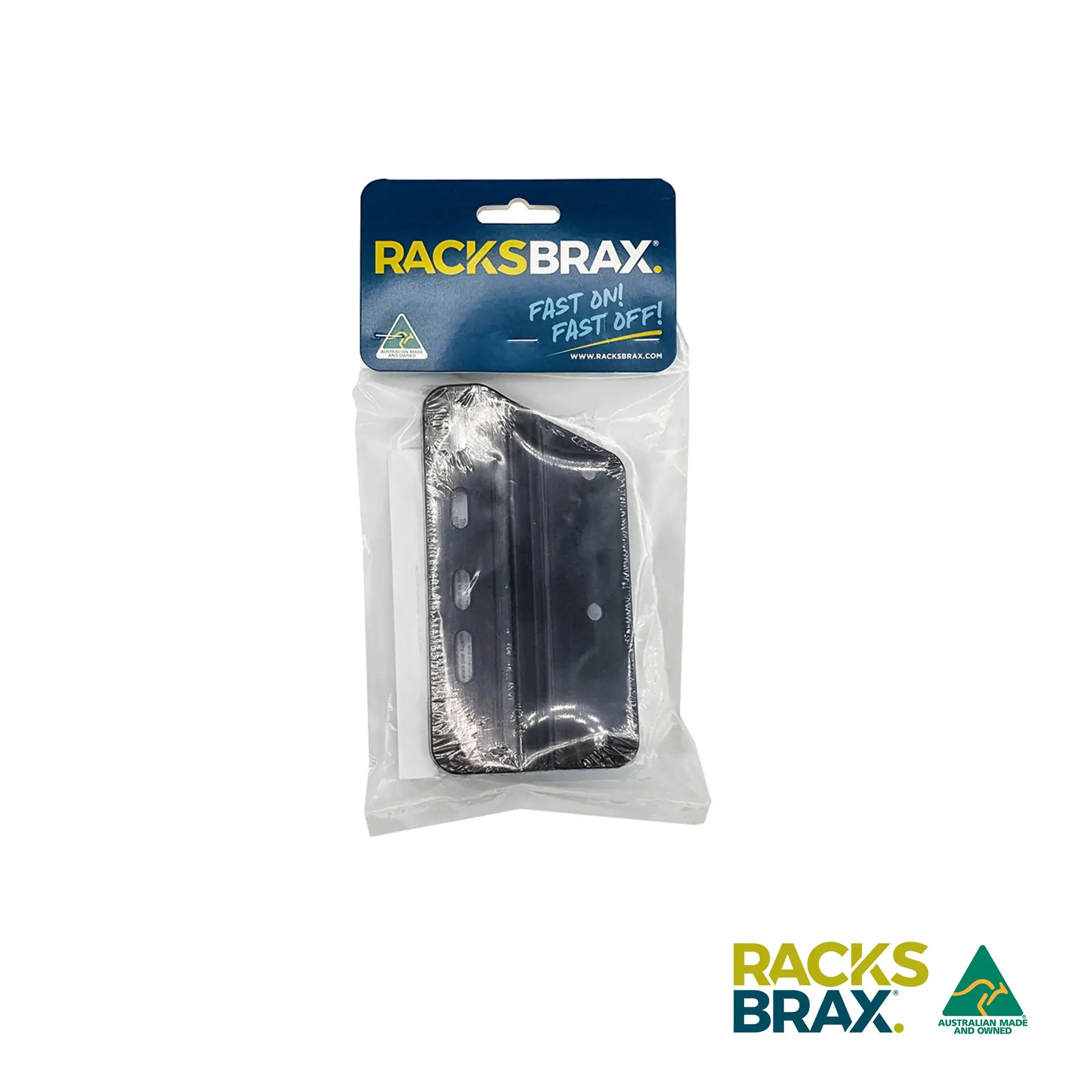

XD Multi-Awn Adaptors are supplied in matching double or triple sets to correspond with the selected XD Hitch configuration.

-

The XD Hitch (9000, 9001) will also work with our entire RacksBrax XD Accessory range:

  - XD Wall Mount (9010) or XD Lockable Wall Mount (9011) which lets you remove your roof rack accessory so that it can be fixed to a garage wall when not in use.
  - XD Multi-Awn Adaptor (9114, 9115) for removing 30 Second, Bushwakka and SUPA PEG 270 Outbound Shield 6 awnings quickly.
  - XD Awning Connector (9120, 9121) which adds compatibility for the Alu-Cab 270 Shadow and Quick Pitch Weathershade 20 Second awnings.

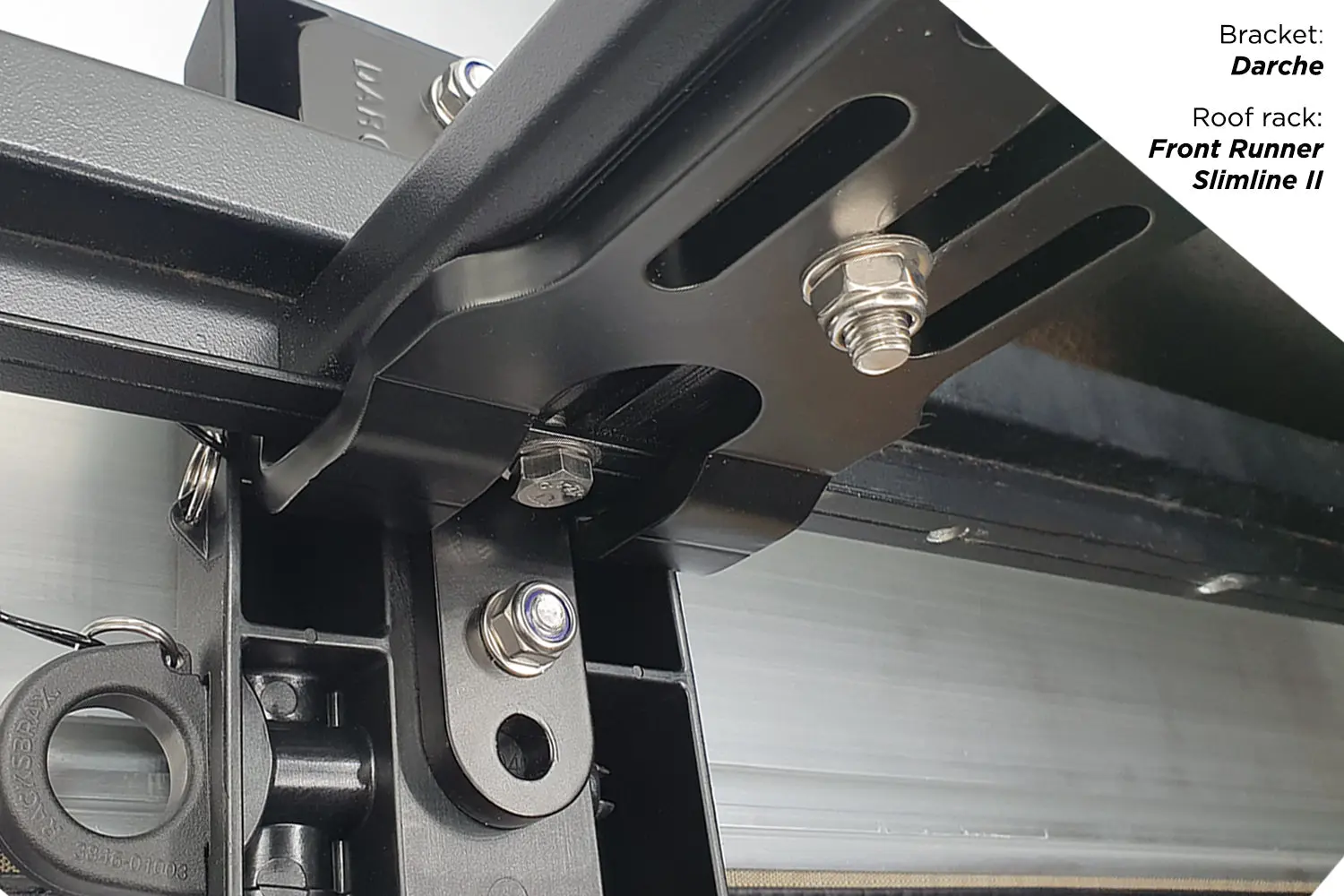

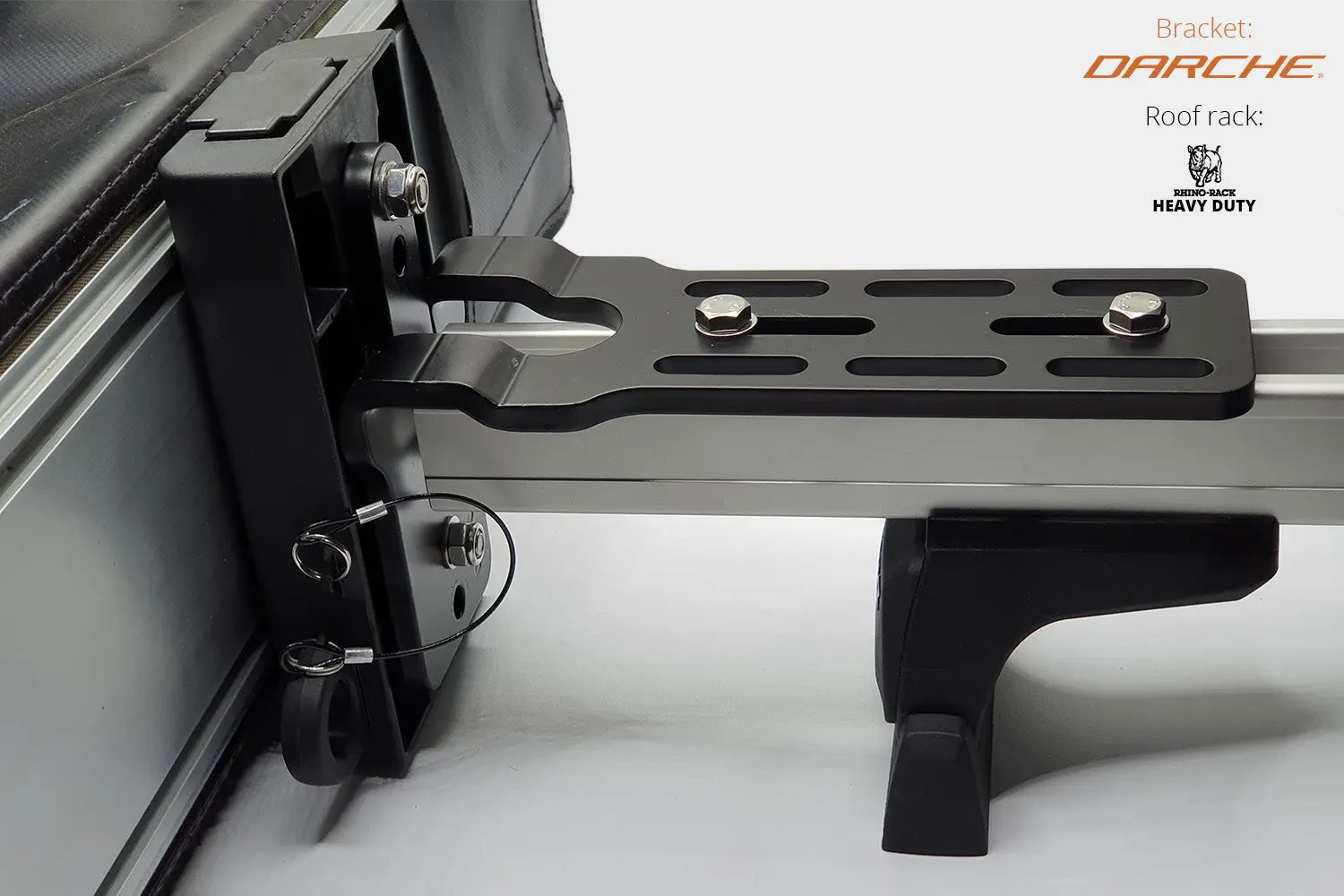

  - XD Bracket range which connects your XD Hitch with most roof bar- and platform-style racks.

-

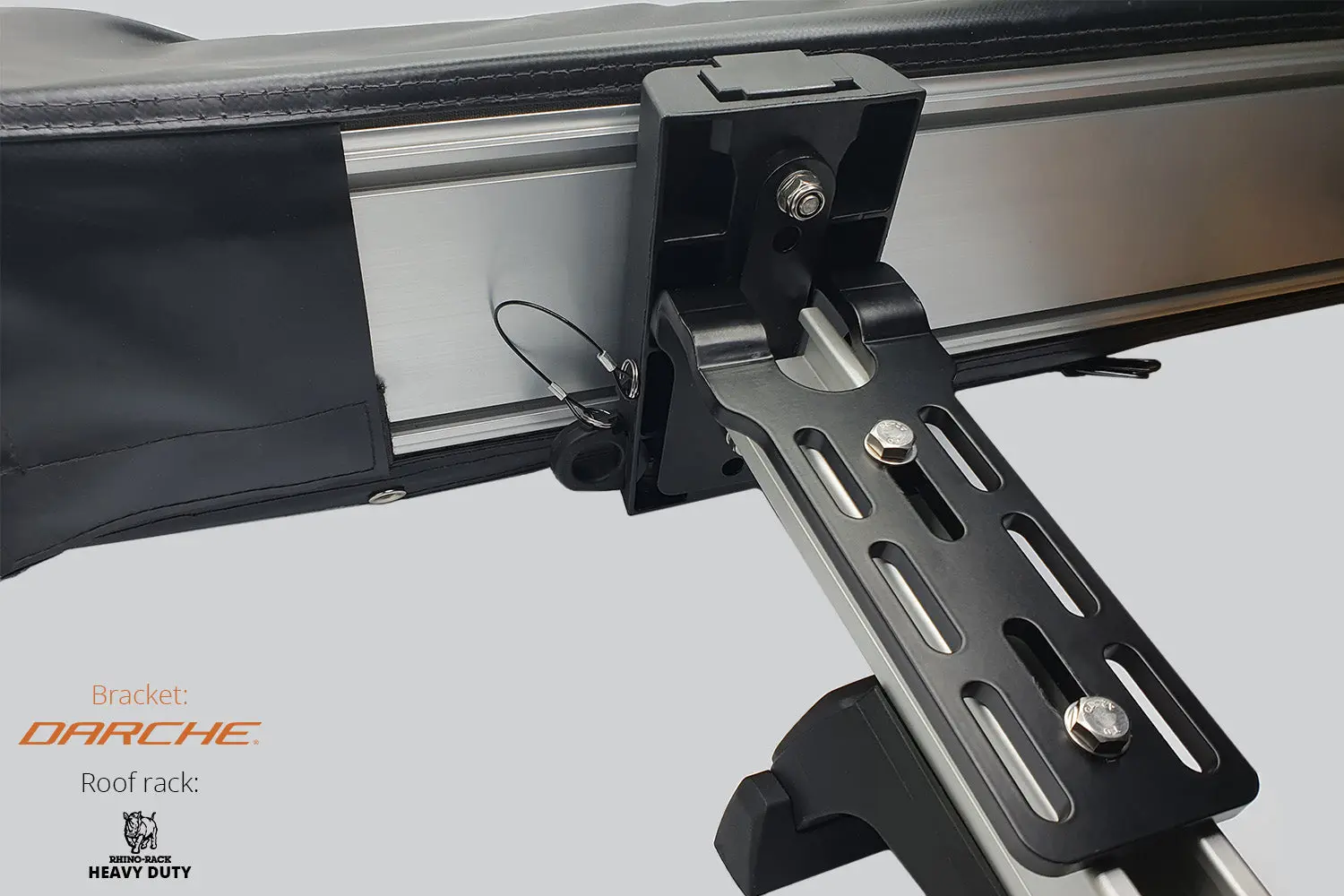

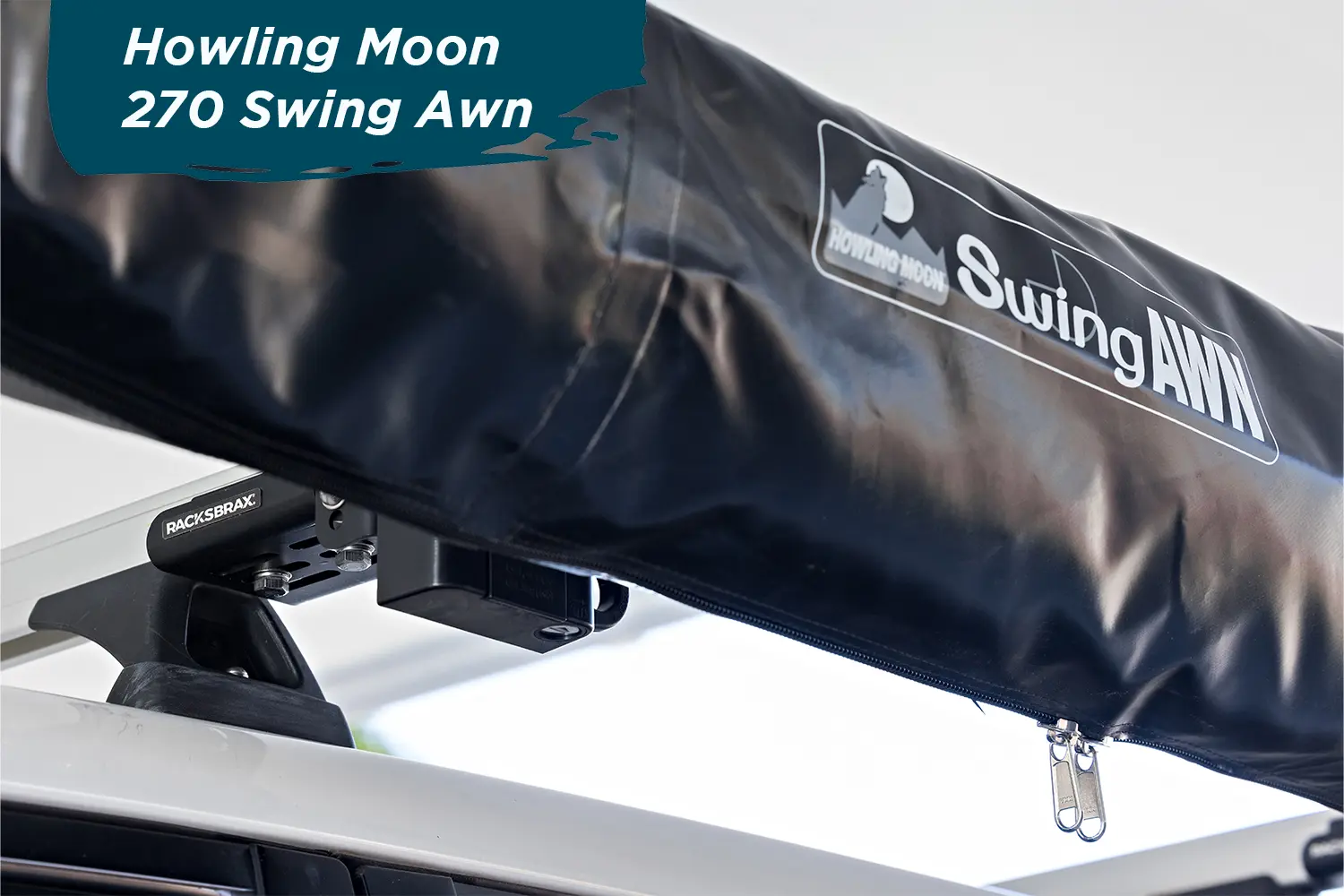

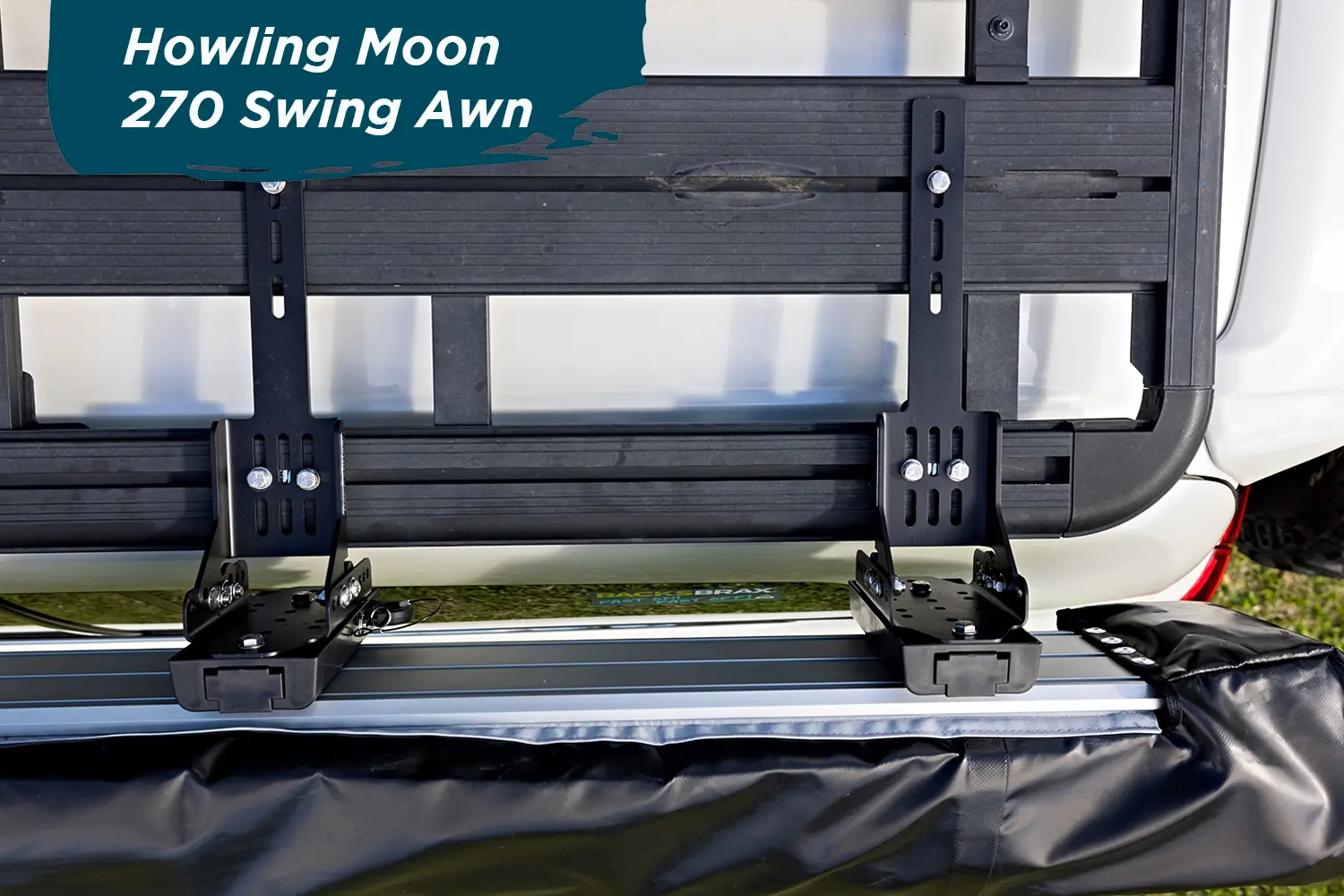

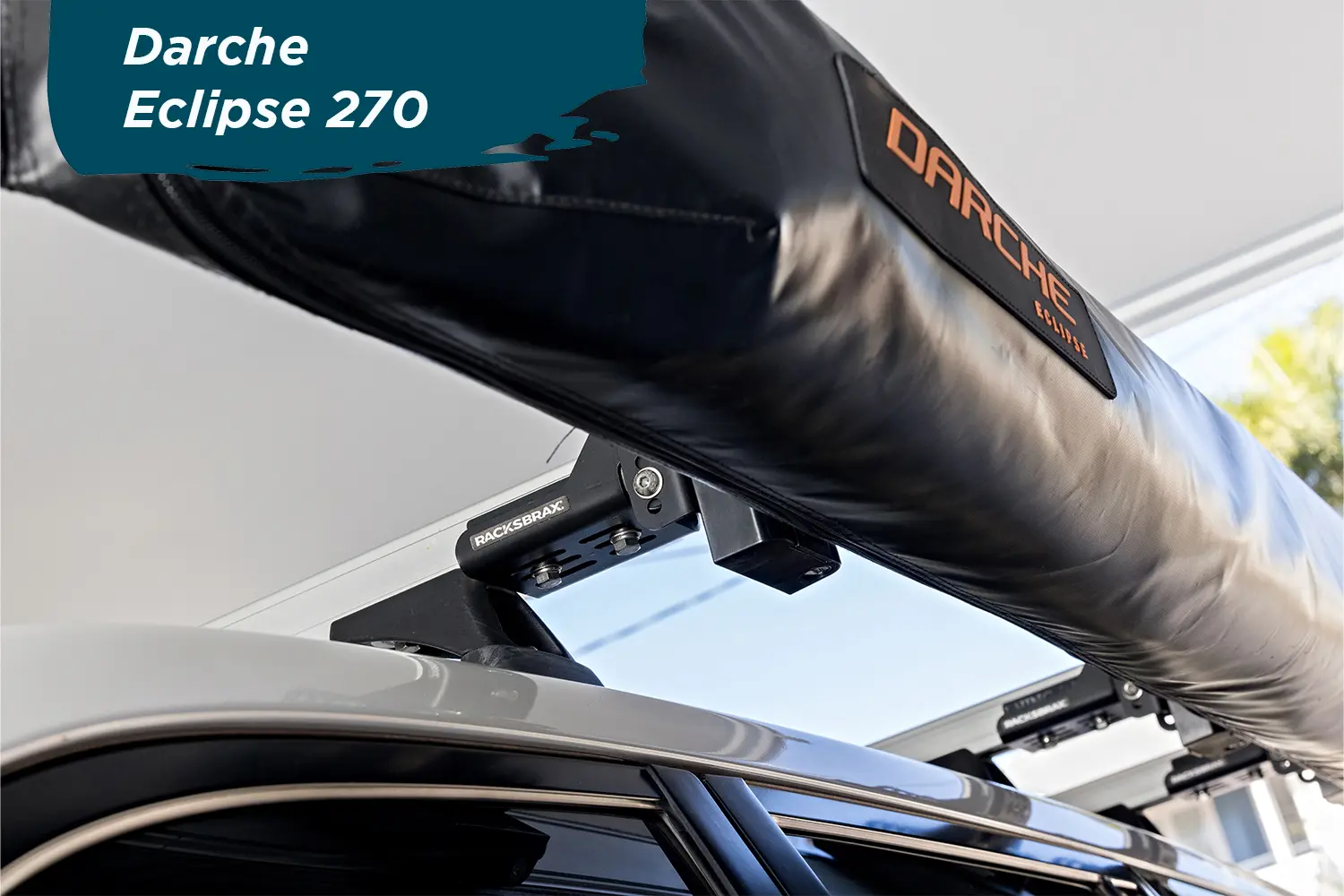

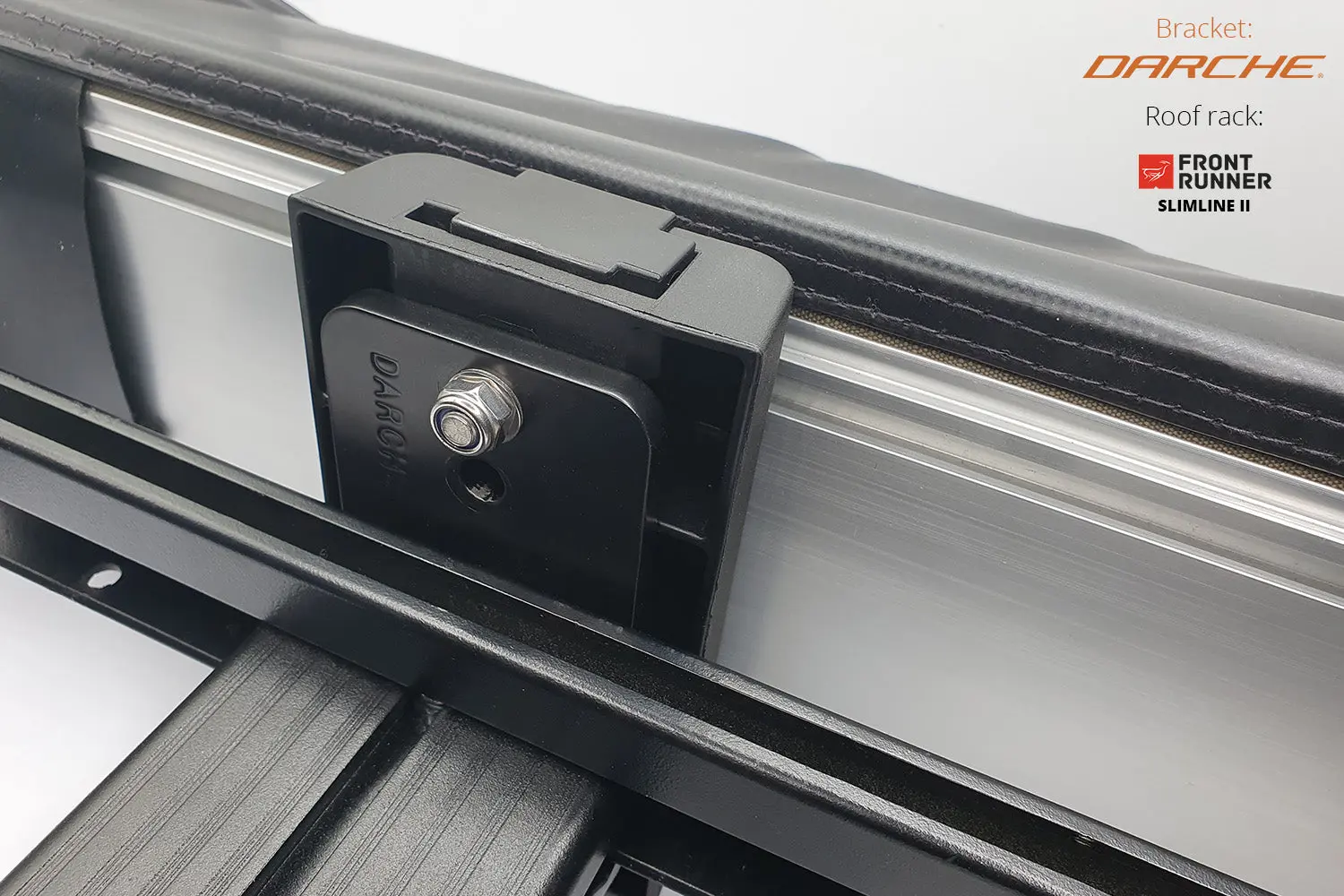

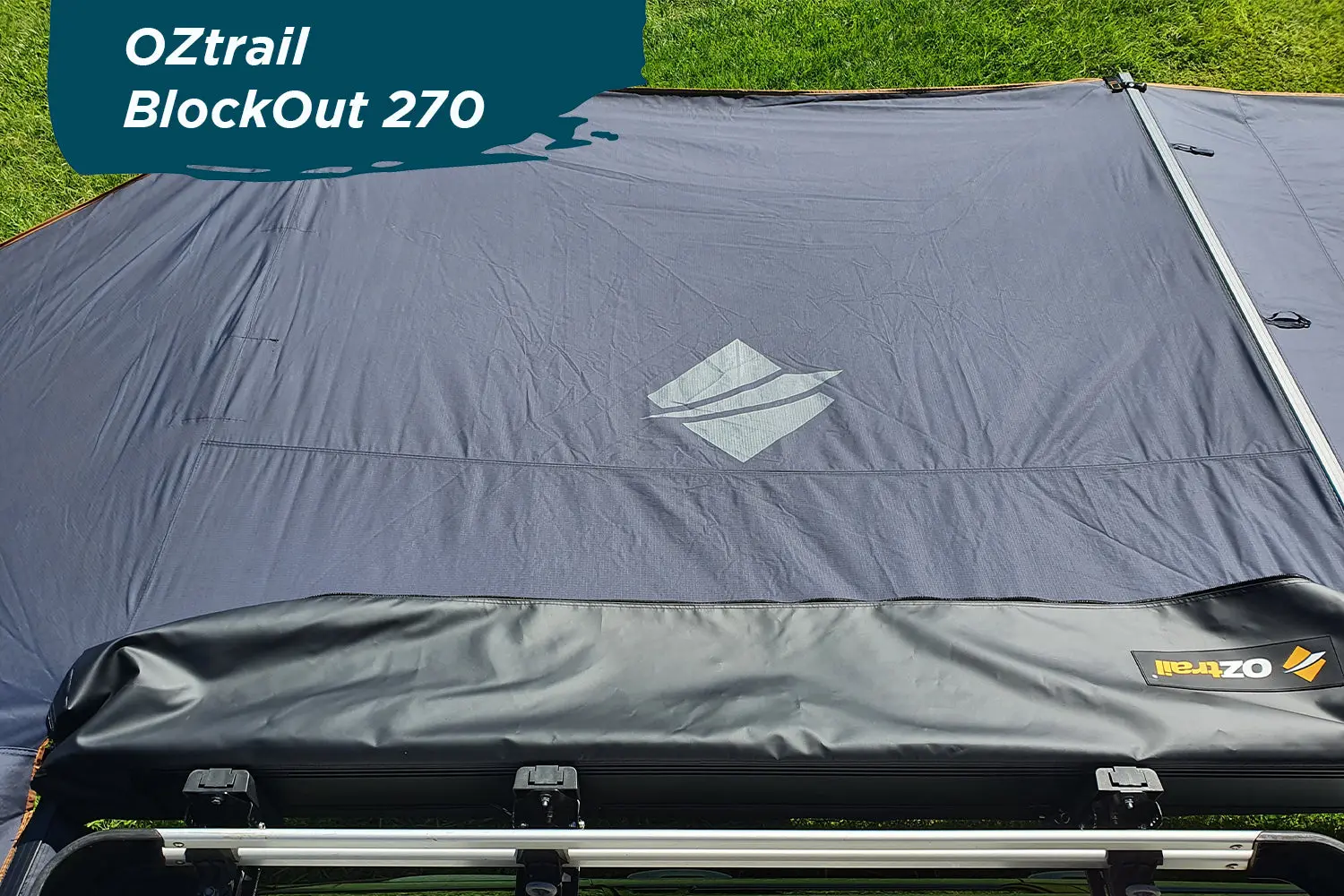

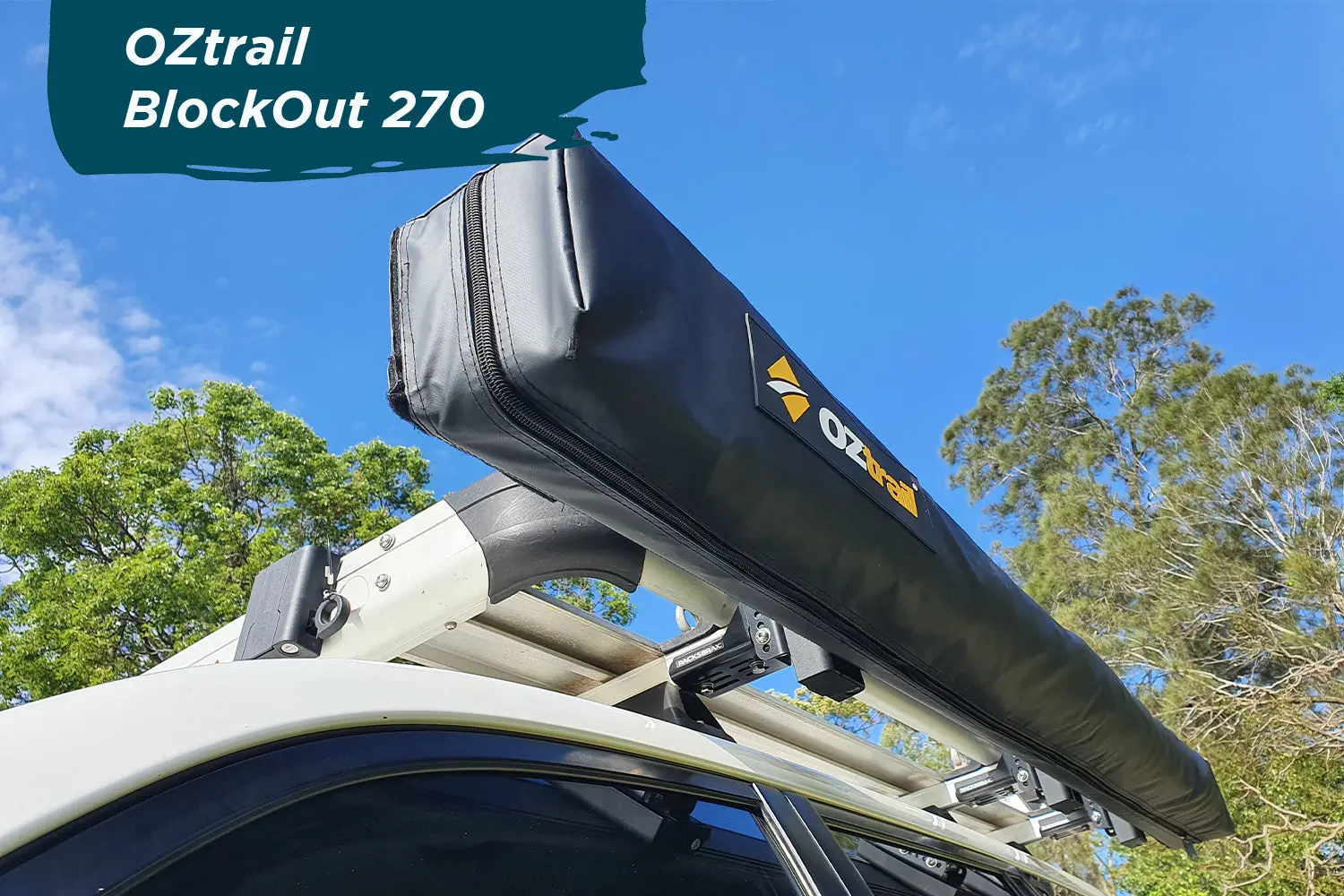

The XD Hitch is ideal for a variety of wing awnings including most 180°, 270° and 360° awnings such as the Darche Eclipse range, Howling Moon range, 23Zero range, The Bush Company range and others. Additionally, the XD Hitch fits the Ostrich Wing awnings utilising the standard Slider Bracket that ships with them. Roof racks and accessory brackets suited to roof racks are not included.

The XD Hitch complements the highly successful HD Hitch; both manufactured in Australia using UV-stabilised, glass-reinforced nylon to withstand harsh outdoor conditions.

-

How many Hitches for my awning?

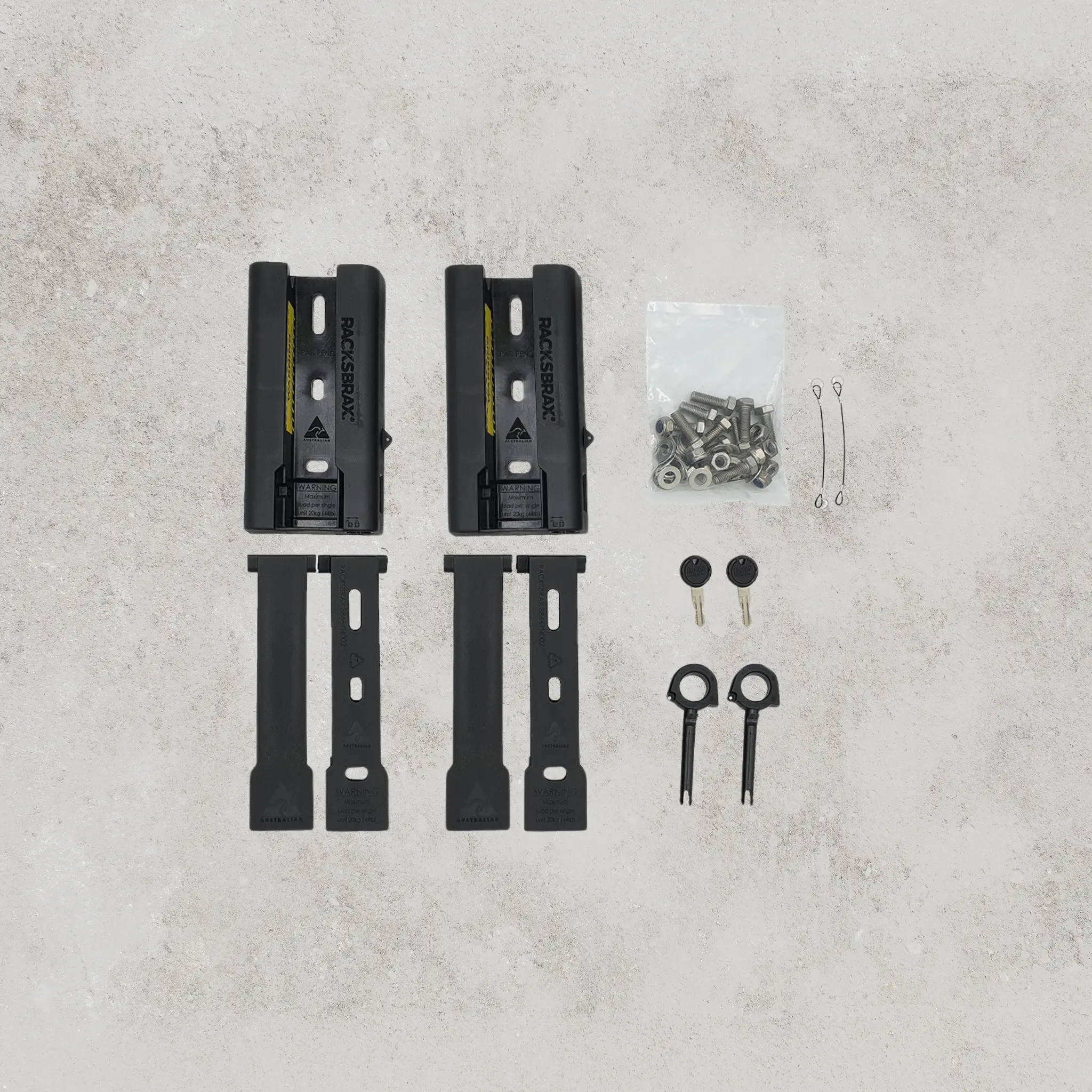

The XD Hitch is sold in Double or Triple packs and includes the corresponding number of XD Multi-Awn Adaptors. Download the PDF recommendation guide for a summary of the minimum number of XD Hitches needed for various awning types.

NOTE: Awnings must be restrained in windy conditions, drained during rain and cleared during snow.
