180 XL Squared Pro

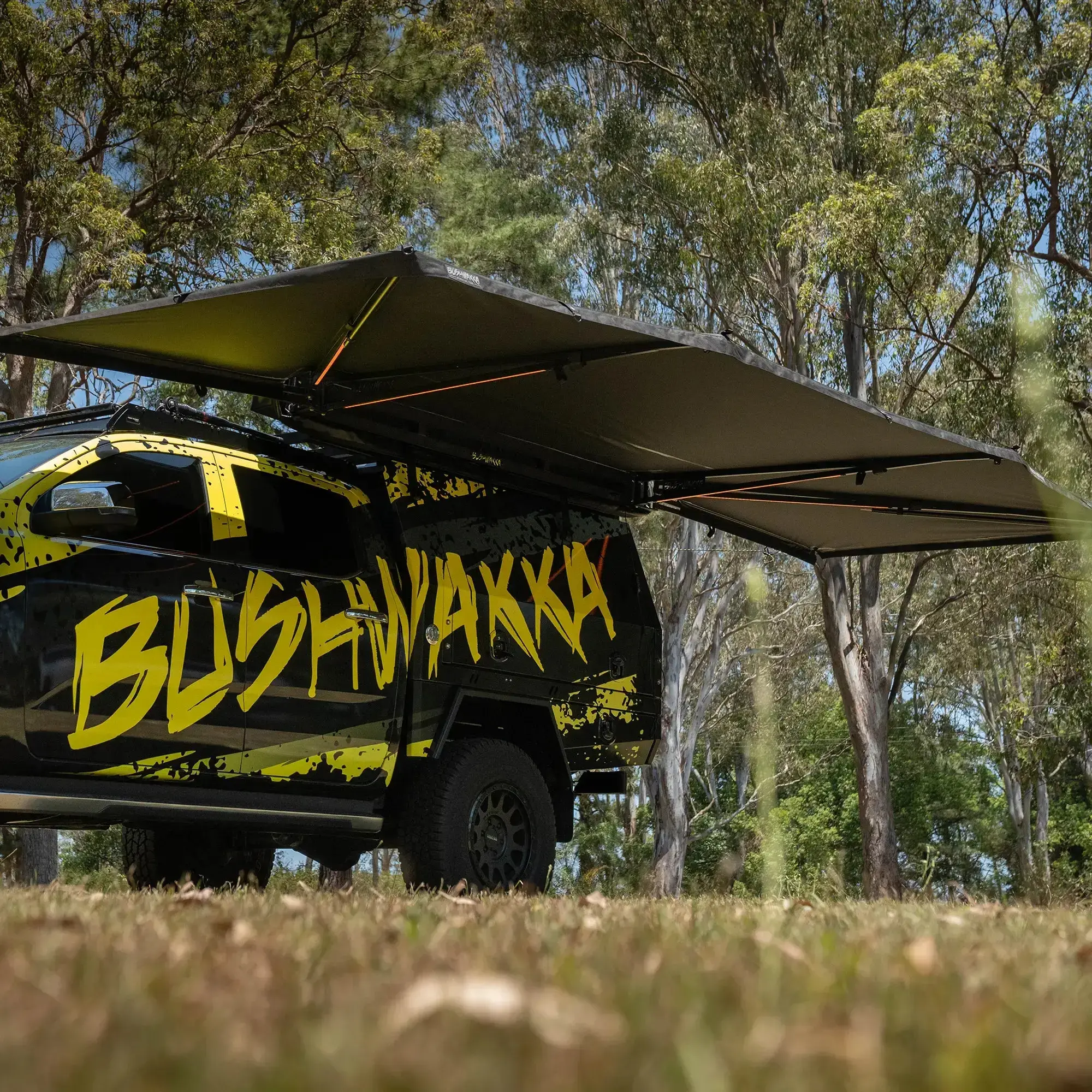

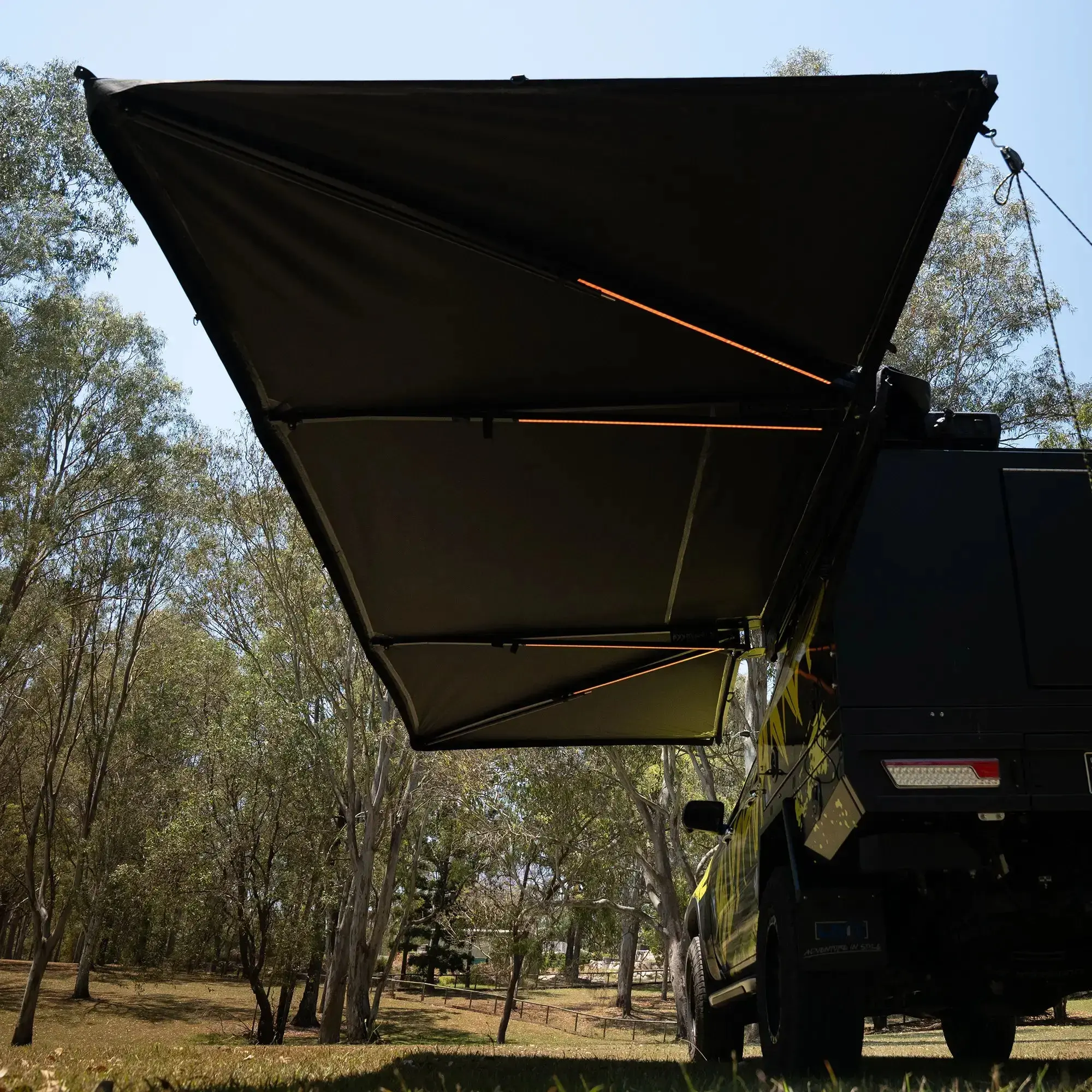

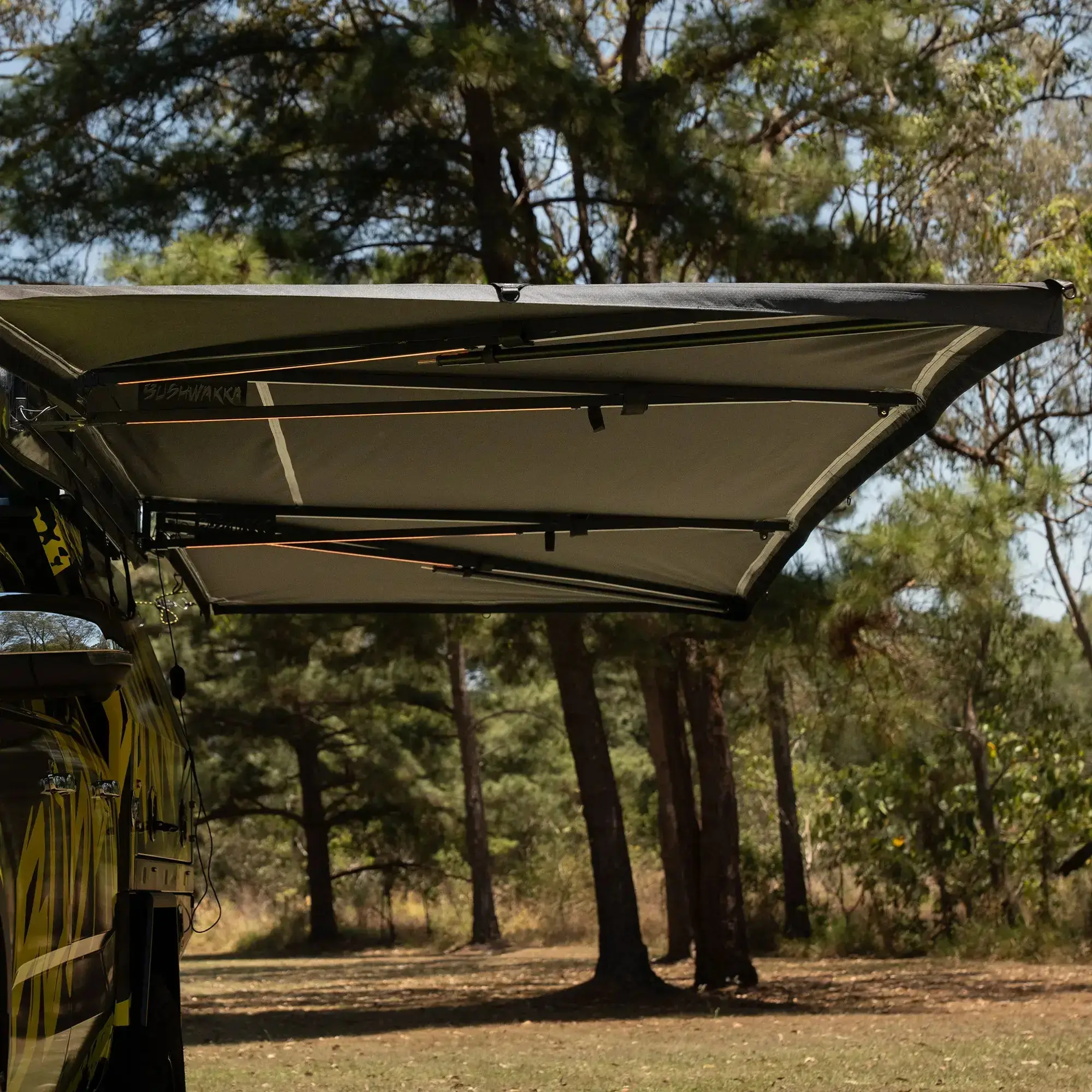

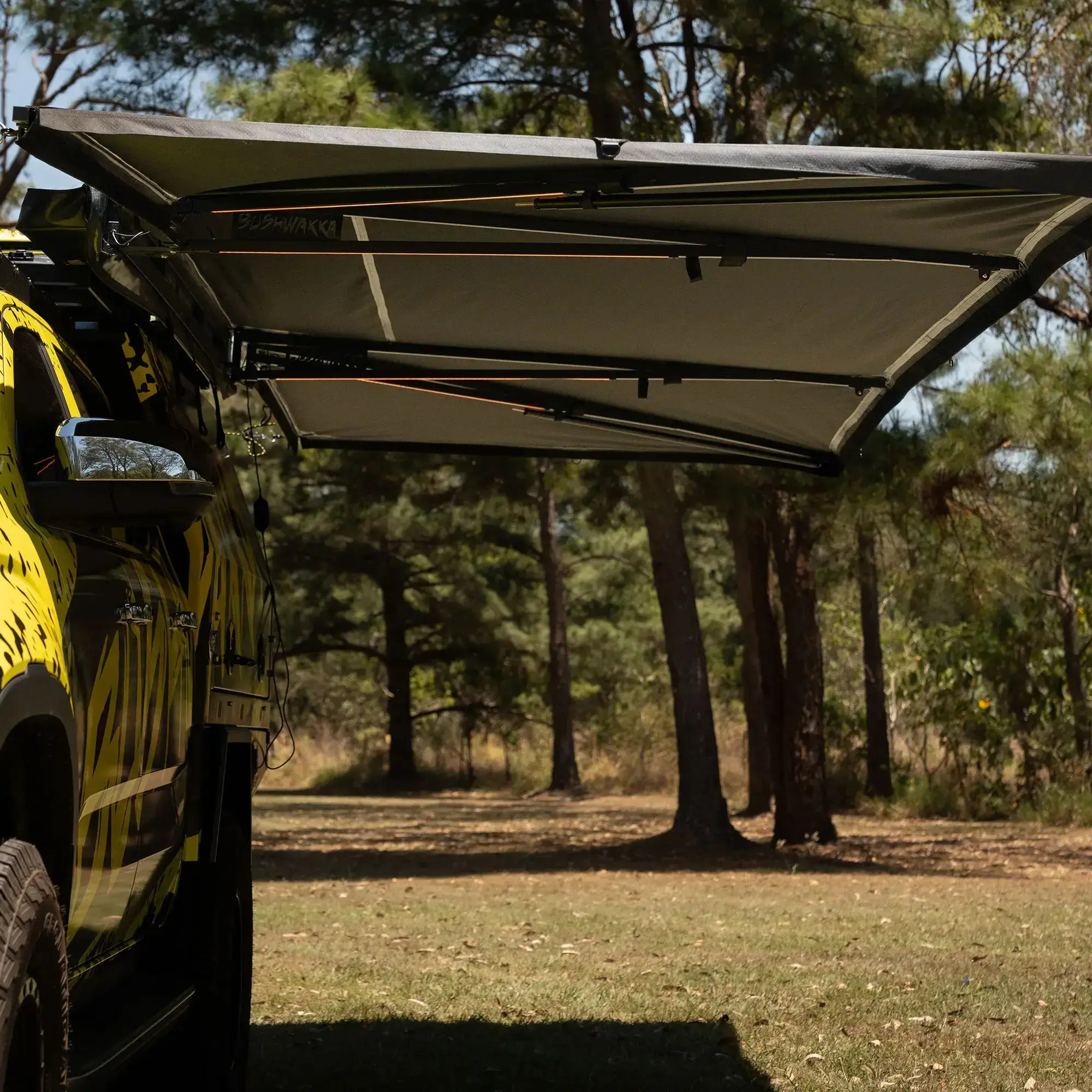

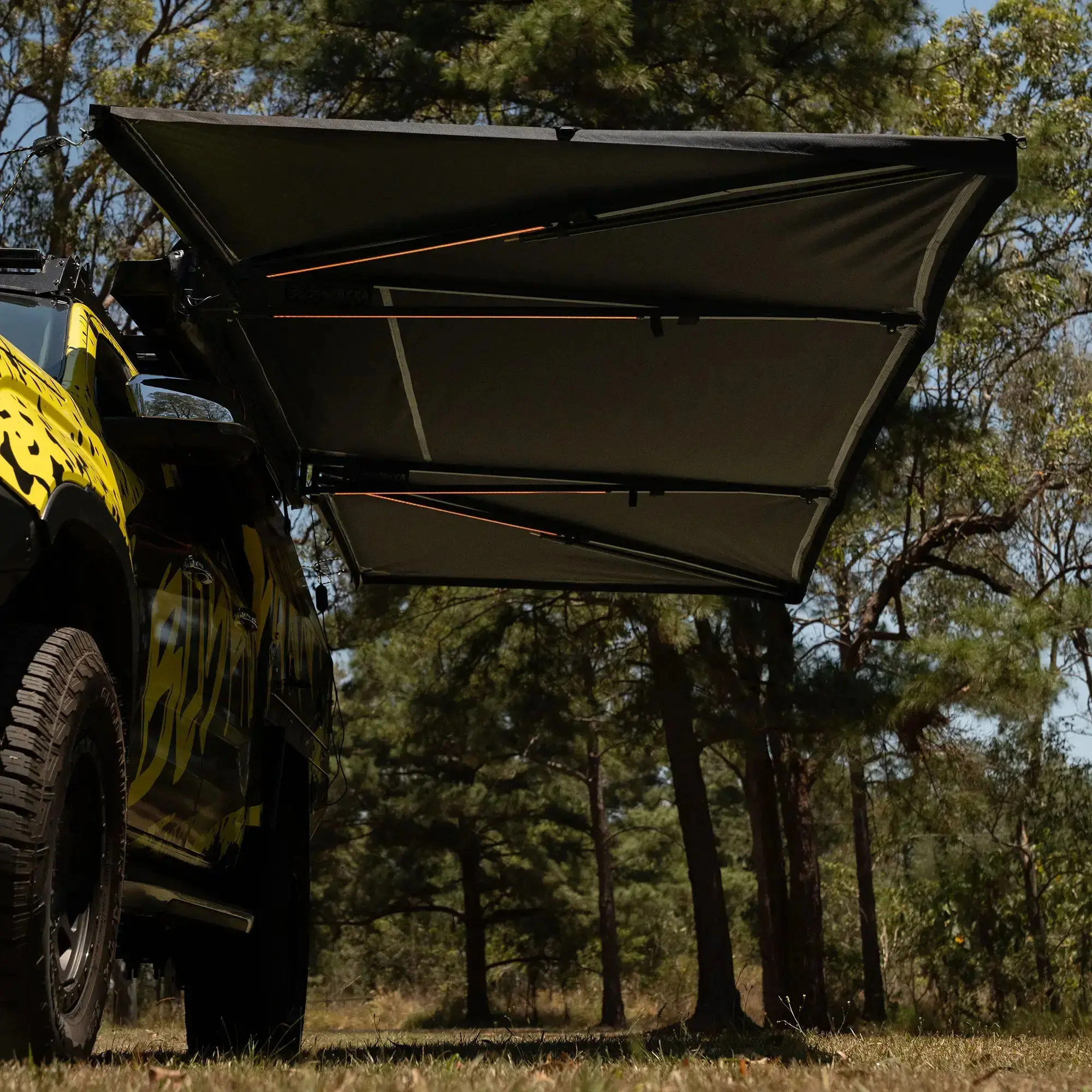

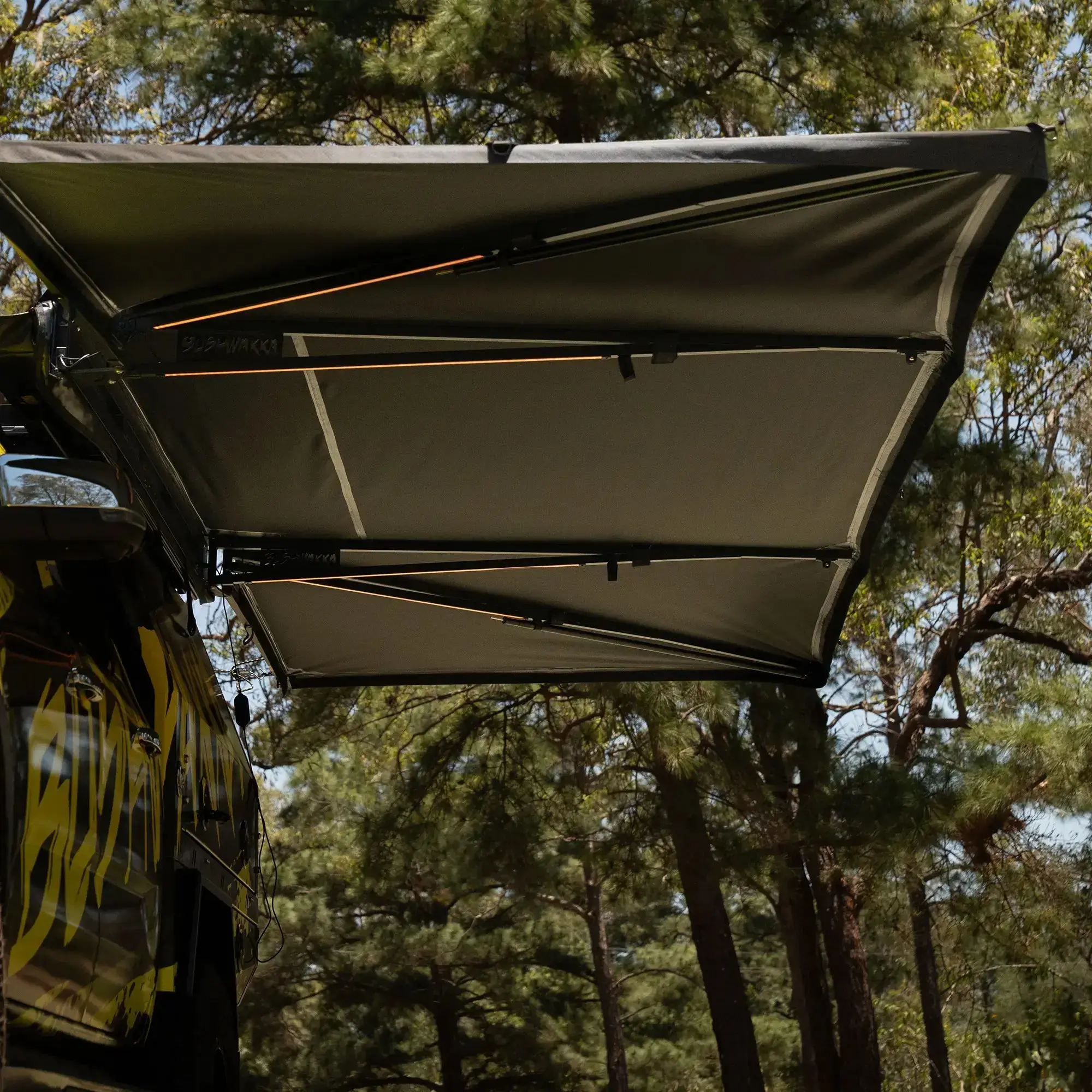

 Elevate your camping experience with the 180 XL Squared Pro Awning in sleek black, delivering extended 180-degree coverage with a squared design. Its 2.5 m frame provides an impressive 12 sqm of coverage, ideal for adventurers seeking enhanced protection, durability, and functionality in Australia’s toughest conditions.
Crafted with waterproof 320gsm HexaTough black canvas, this awning ensures superior weather protection, enhanced UV resistance, and a modern aesthetic. The robust aluminium ENDO frame provides freestanding stability, complemented by innovative features for unmatched versatility.
Crafted with waterproof 320gsm HexaTough black canvas, this awning ensures superior weather protection, enhanced UV resistance, and a modern aesthetic. The robust aluminium ENDO frame provides freestanding stability, complemented by innovative features for unmatched versatility.
| STANDOUT FEATURES | |
| 100% freestanding | |
| Awning Fabric rating Ultraviolet Effectiveness UVE95+% rating | |
| 320gsm HexaTough black canvas | |

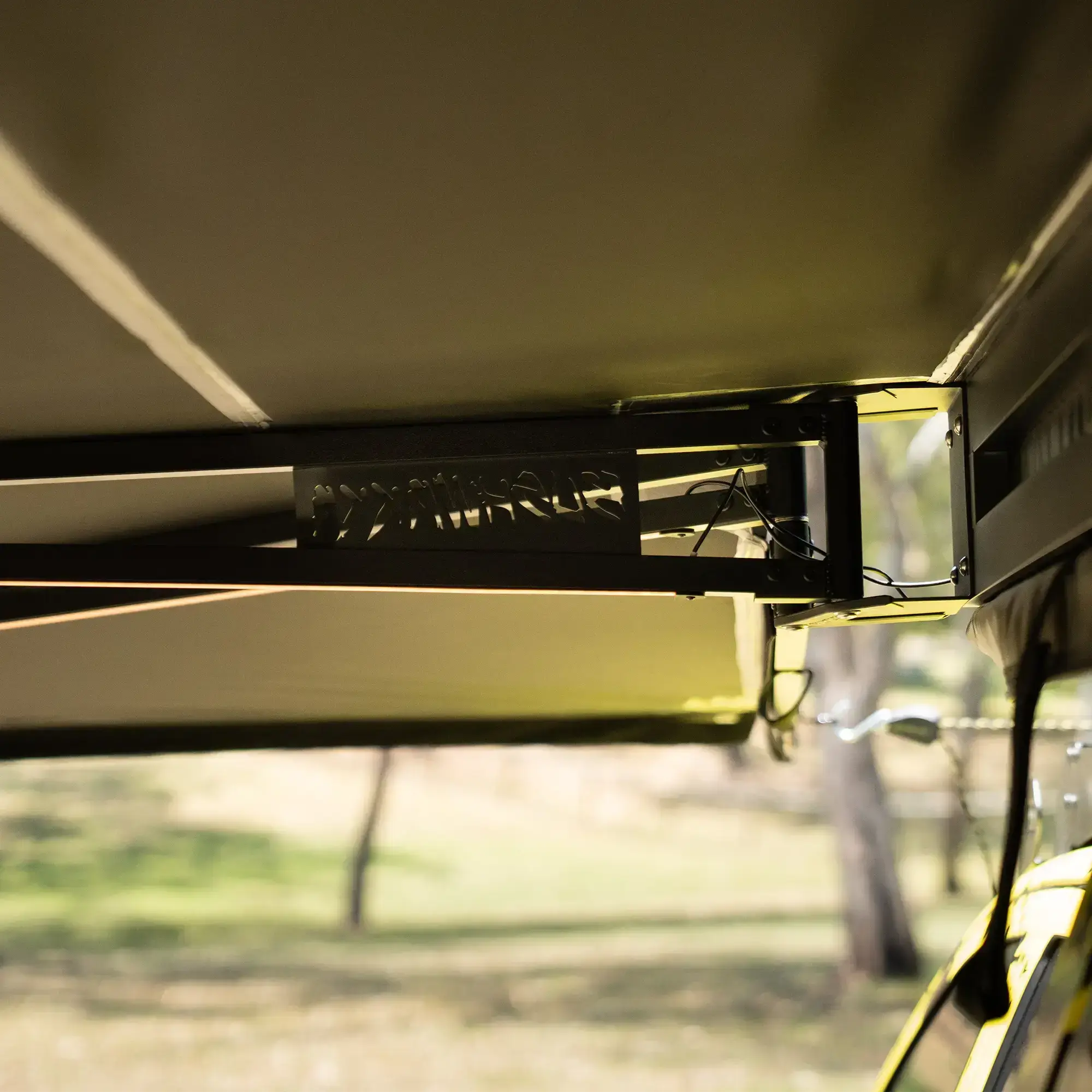

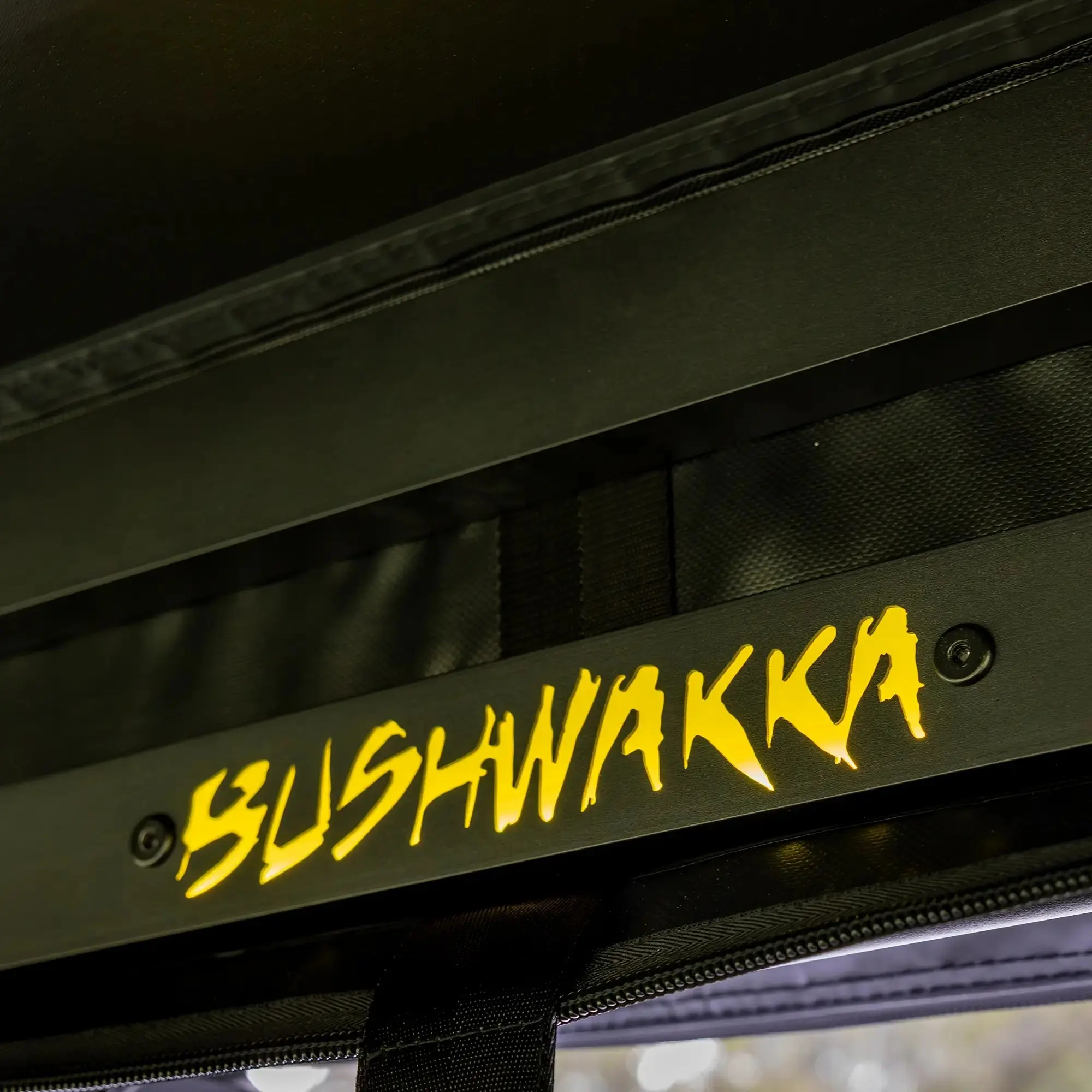

| Black aluminium backing plate with internal ENDO frame for maximum strength | |
| Reinforced arm guards on each awning arm | |

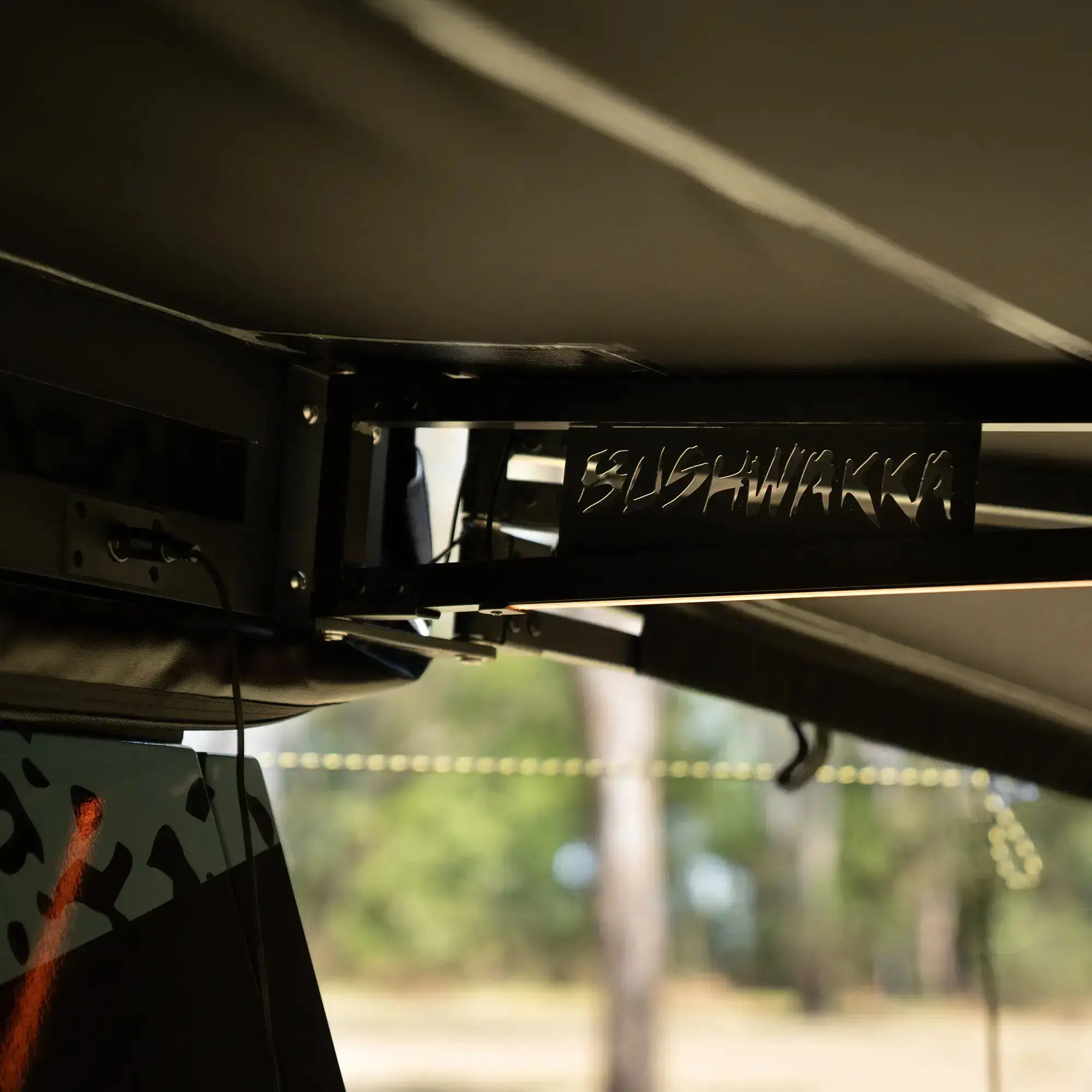

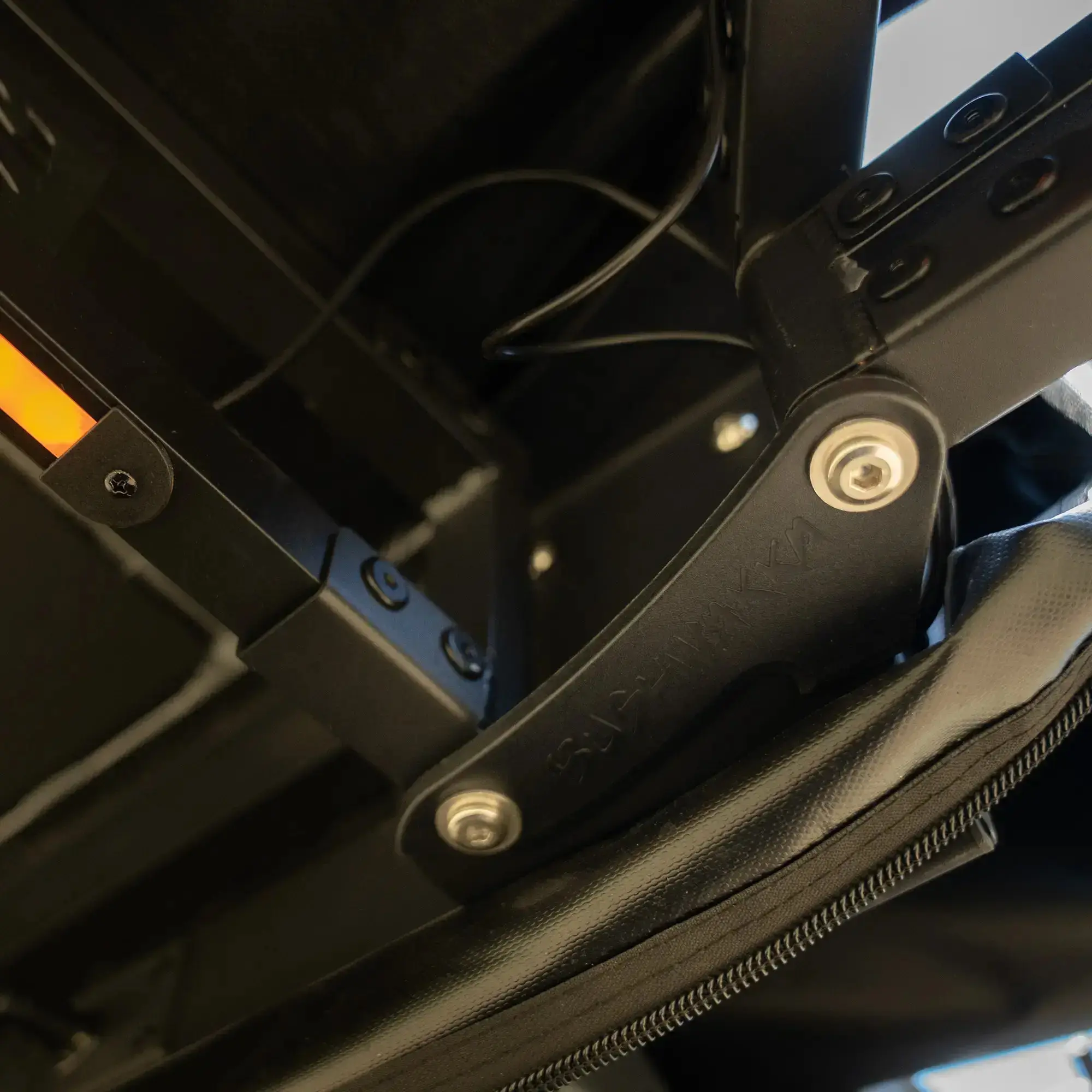

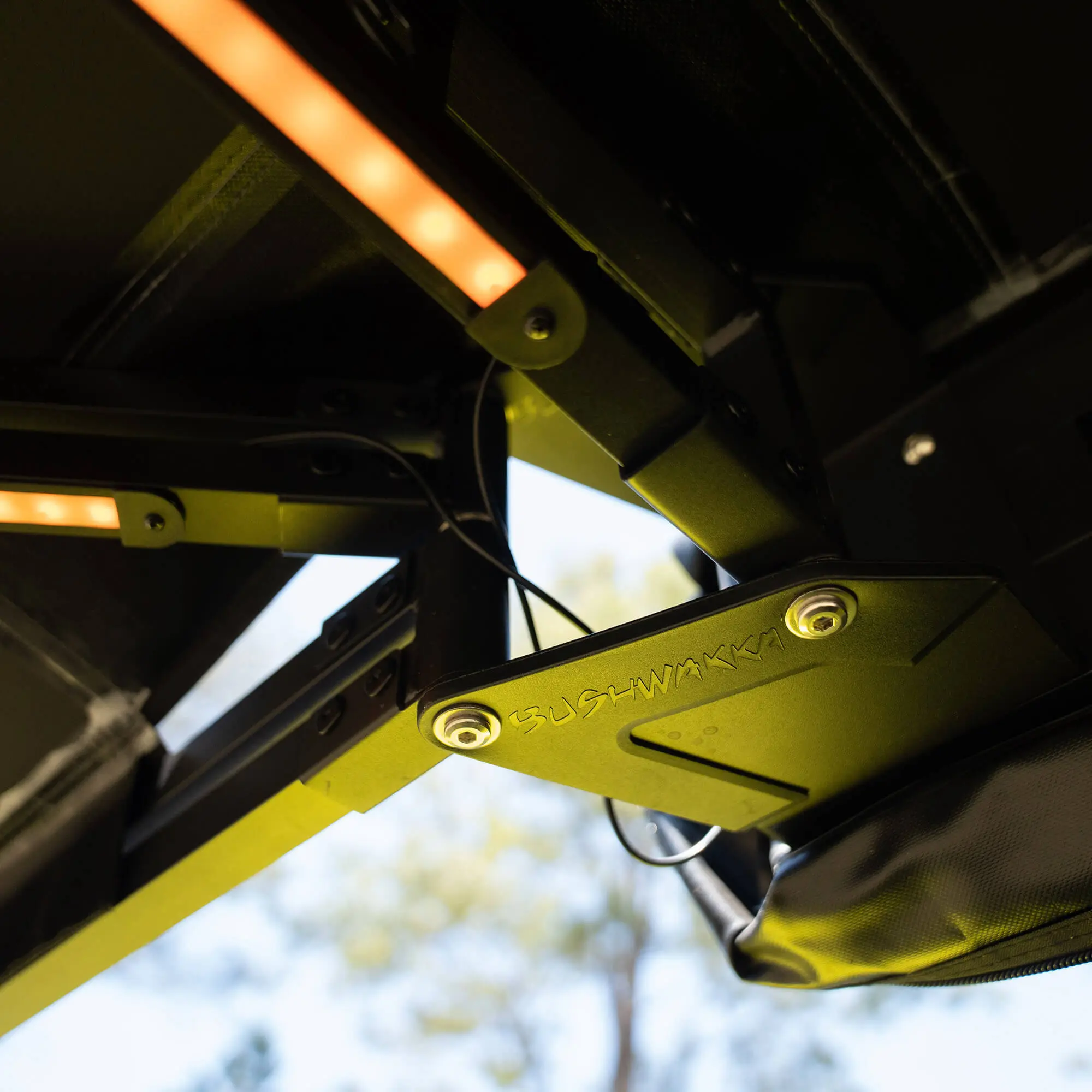

| Engineered hinge design | |

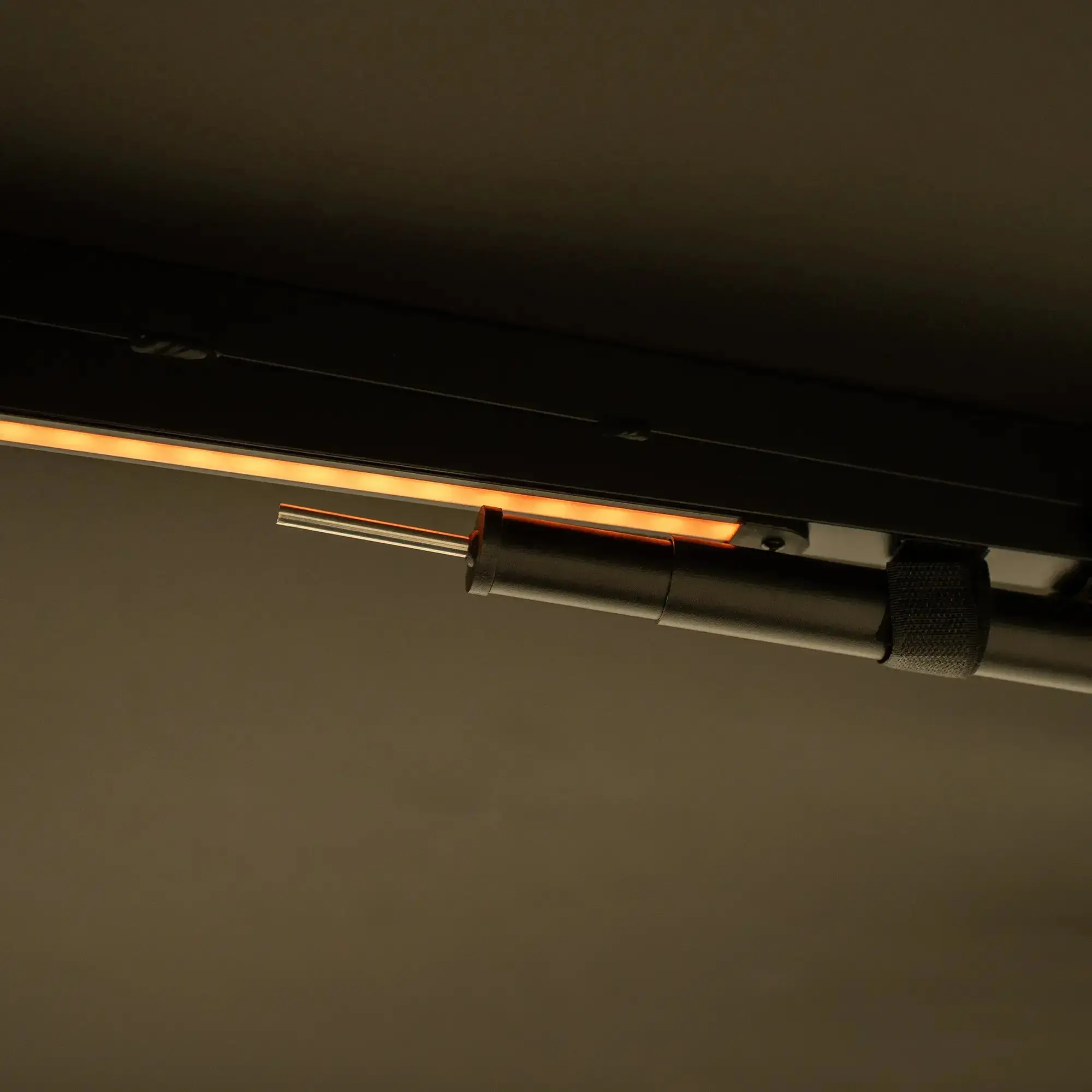

| Repositionable spigot twist-lock legs | |
| Integrated fittings allow for additional legs | |
| Rain tabs with tie-down points & guy ropes | |
| Sail track is integrated in the backing plate for awning organiser compatibility | |
| Velcro valance compatibility with awning walls, full wall kits or sleepout tents | |
| Insect-reducing red light mode | |

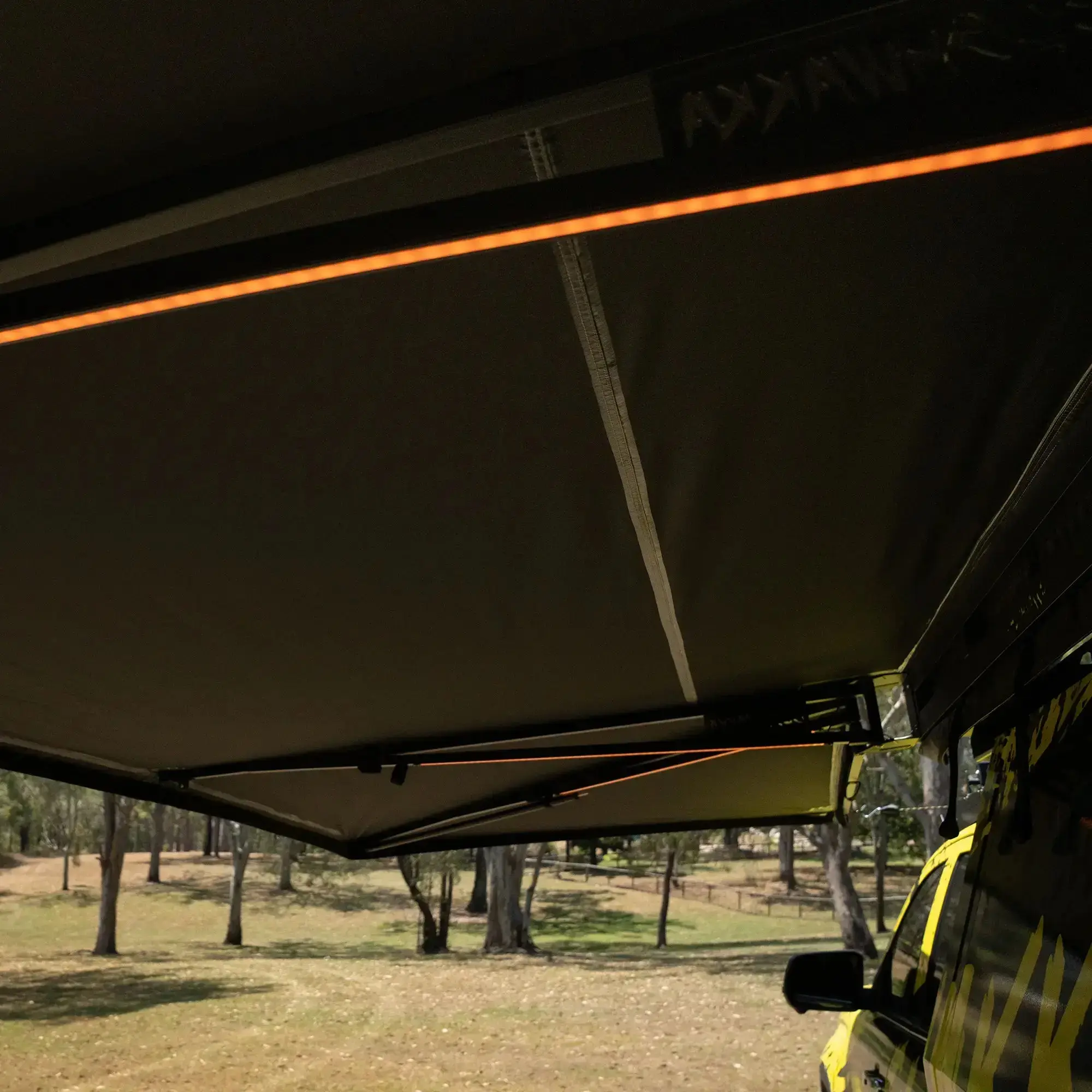

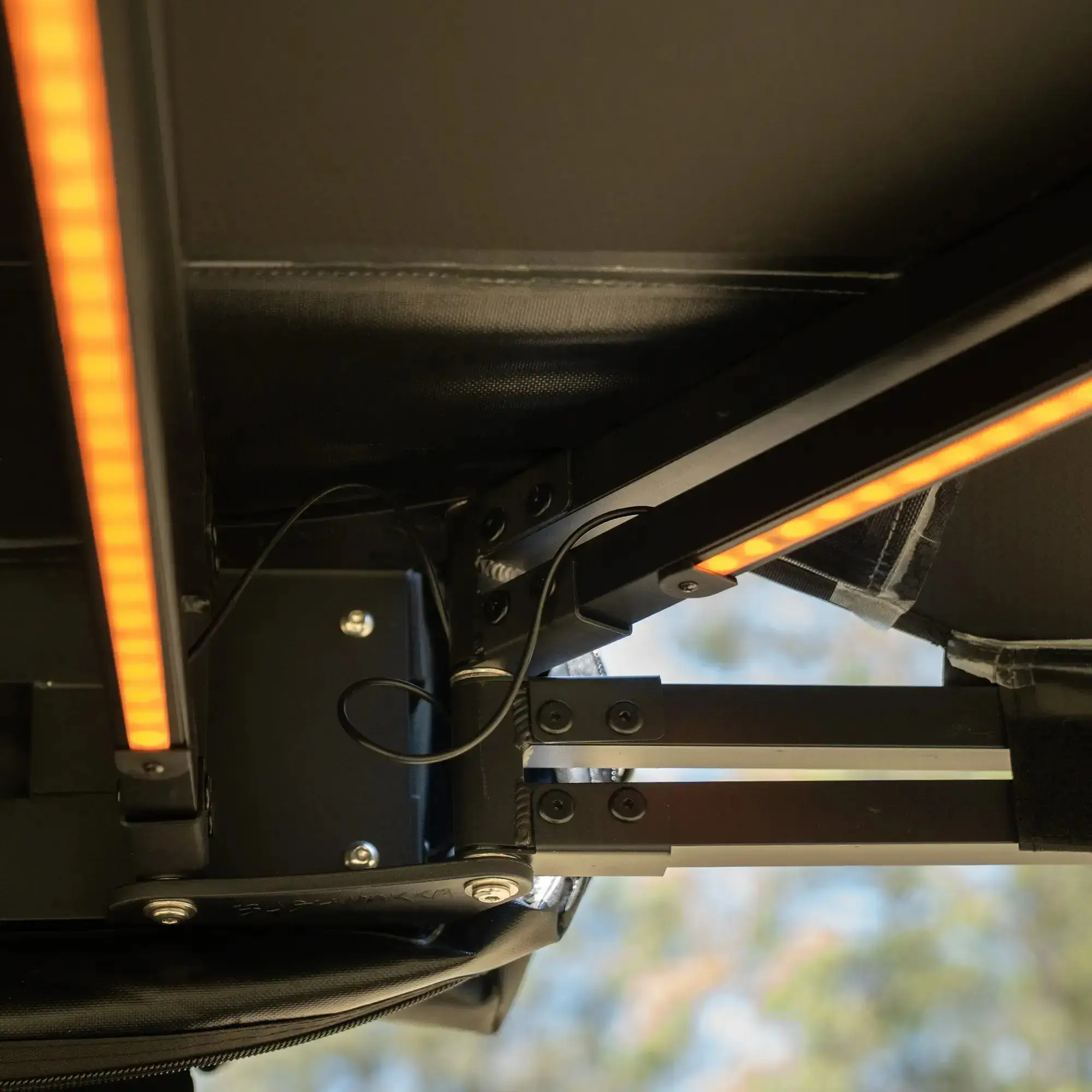

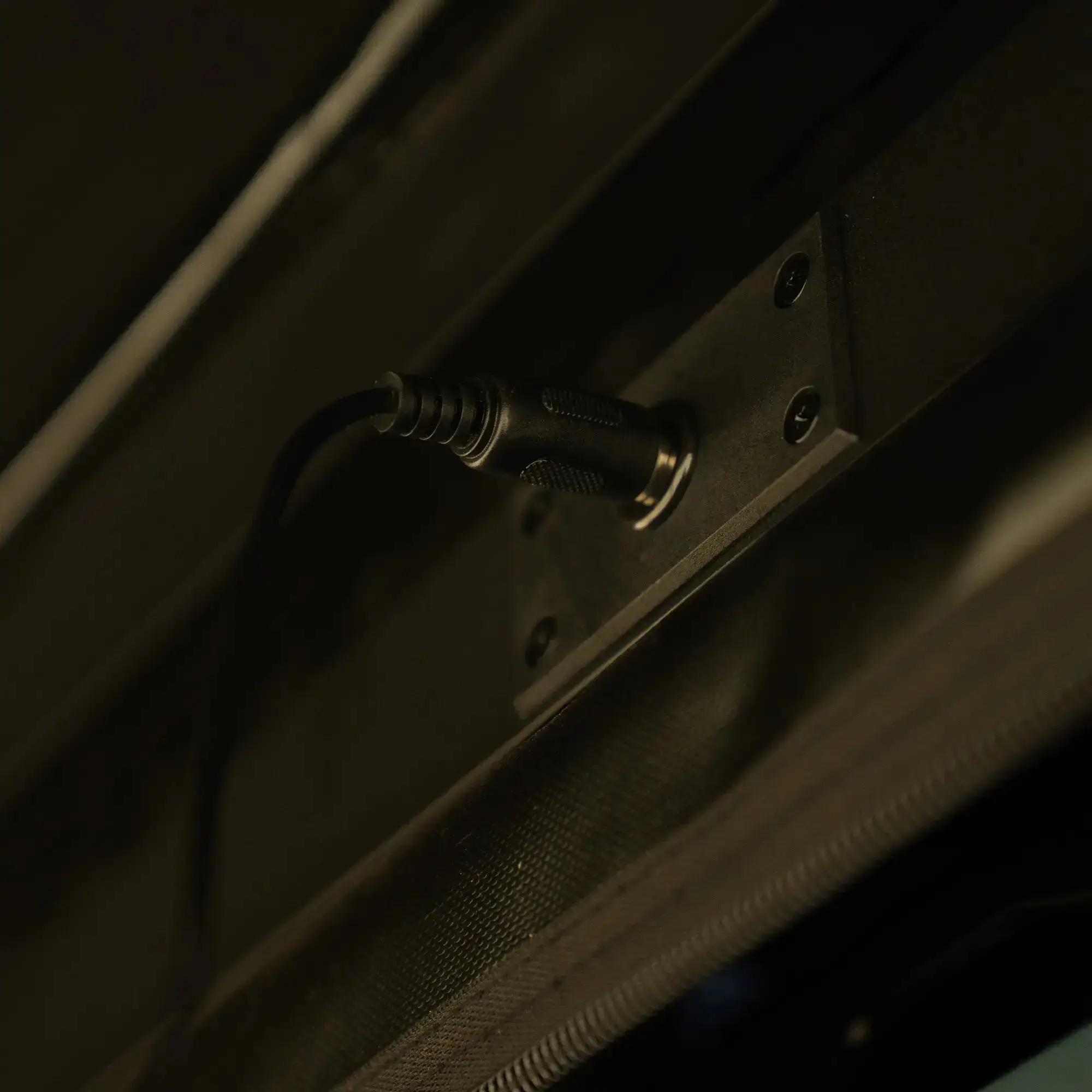

| 100 cm pre-installed RGB LED arms with multi-functional options. A red light function to reduce bugs (invisible to most insects, unlike white or amber lights). No extra installation required. 12V plug-and-play cable | |

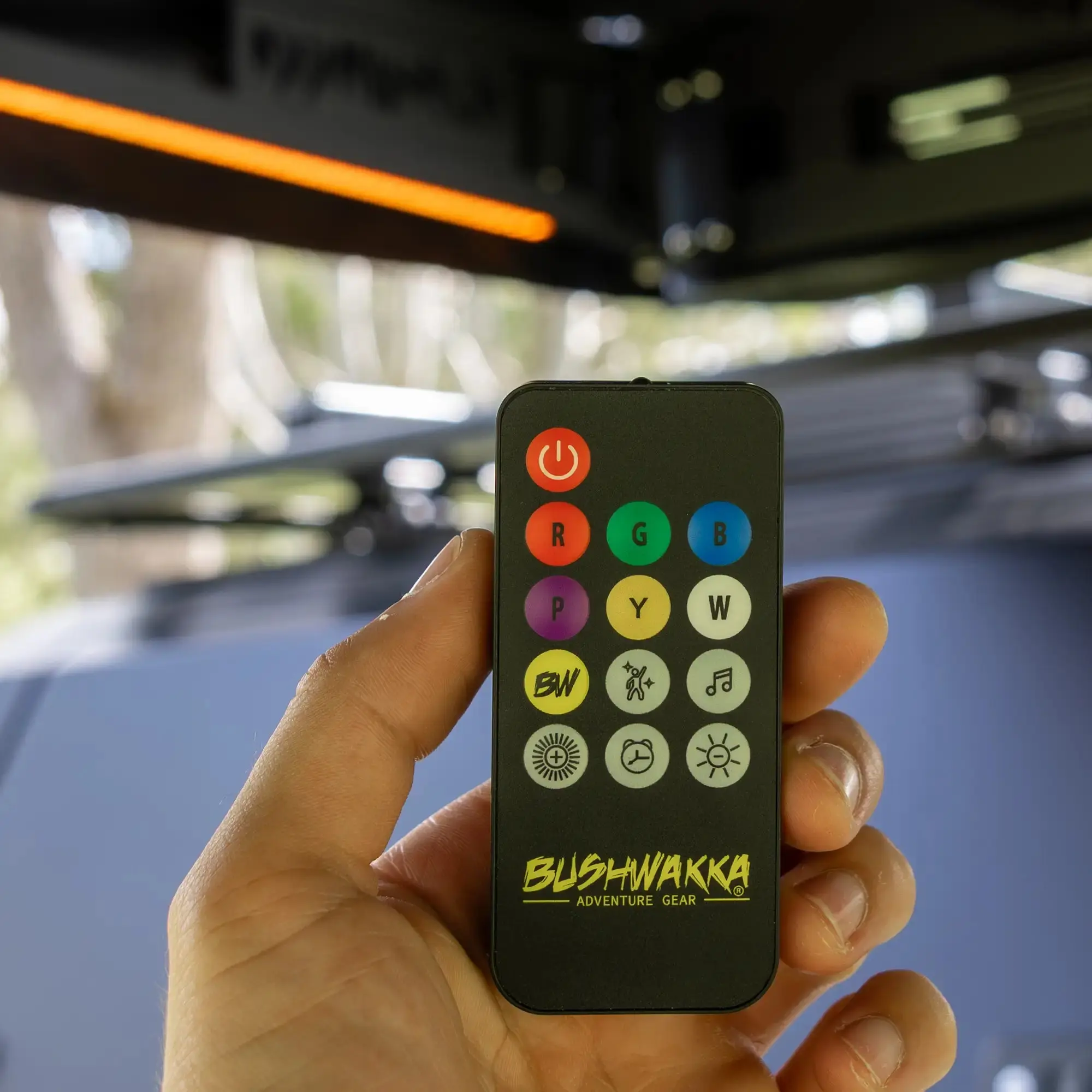

| Wireless remote control for easy mode adjustment(AAA batteries not included) | |

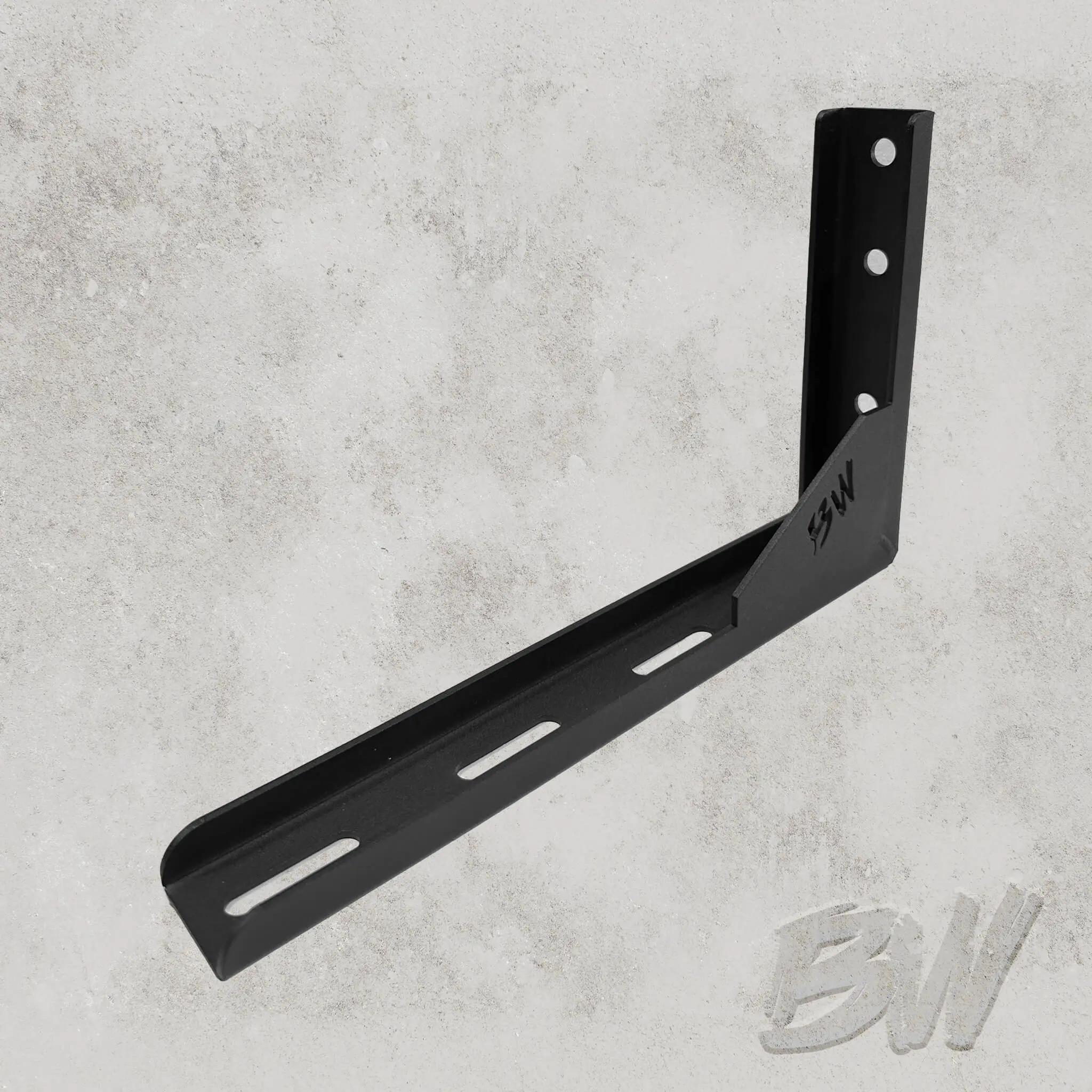

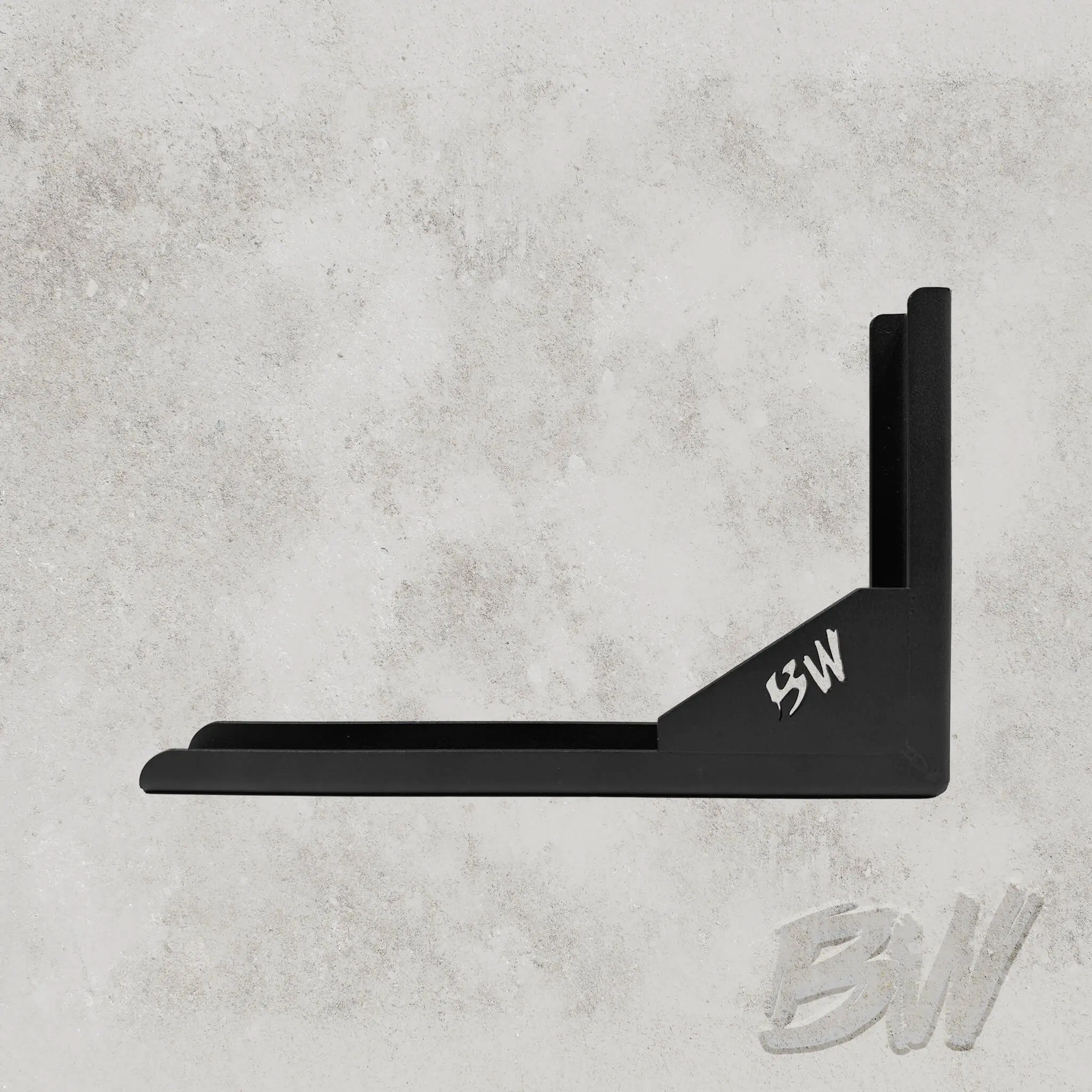

| Standard L-brackets | |
| 304 stainless steel mounting hardware | |
| Quick release tensioners and full accessory kit | |
| Heavy duty PVC awning bag |
| INCLUSIONS | |
| Awning System: | Extended 180-degree coverage with squared 2.5 m design (12 sqm shade) |
| Awning Fabric: | 320GSM HexaTough waterproof black canvas |
| Frame: | Black aluminium backing plate with internal ENDO frame |
| Legs: | 2 x repositionable Spigot Twistlock legs |
| Lighting: | 4 x built-in multi-functional RGB LED light arms |

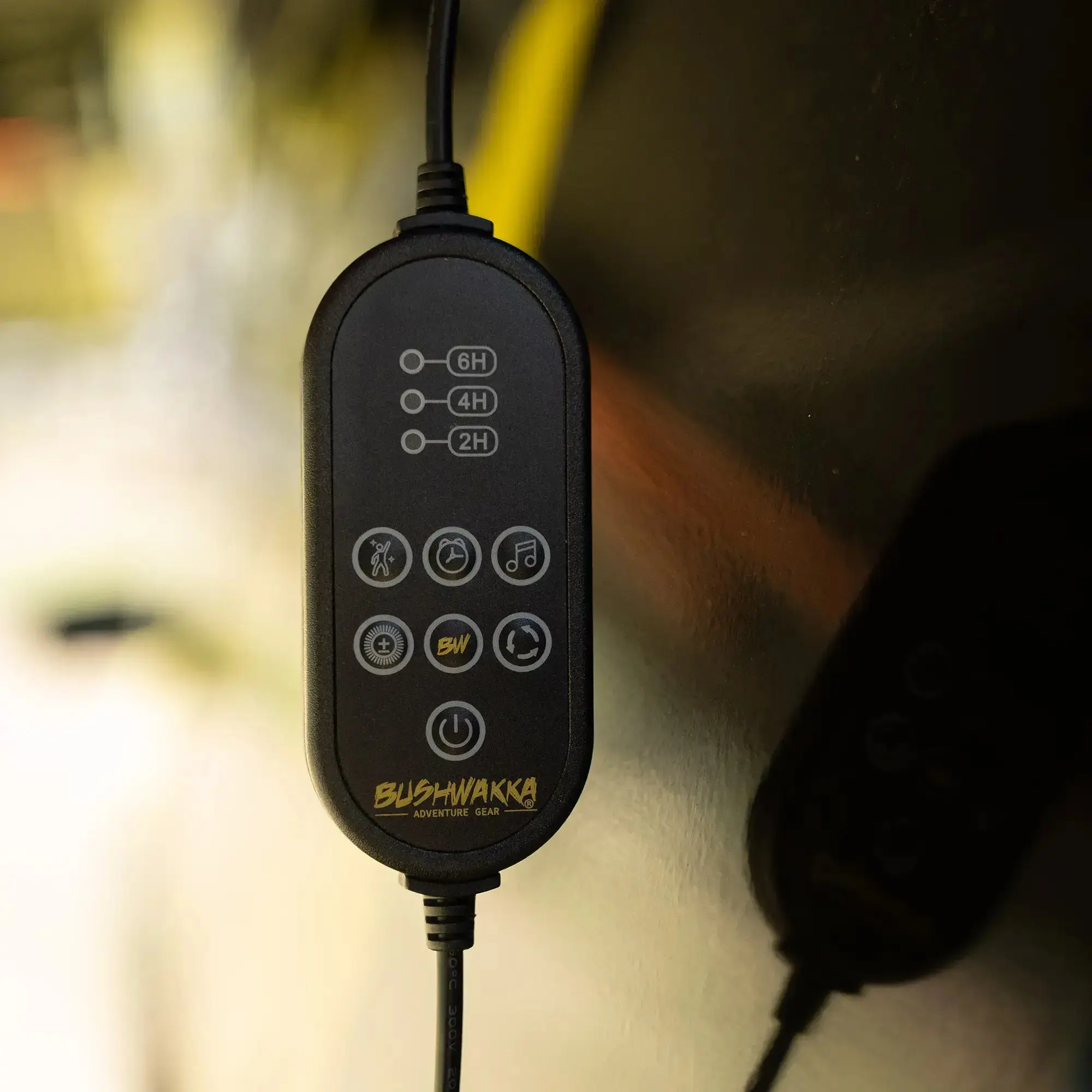

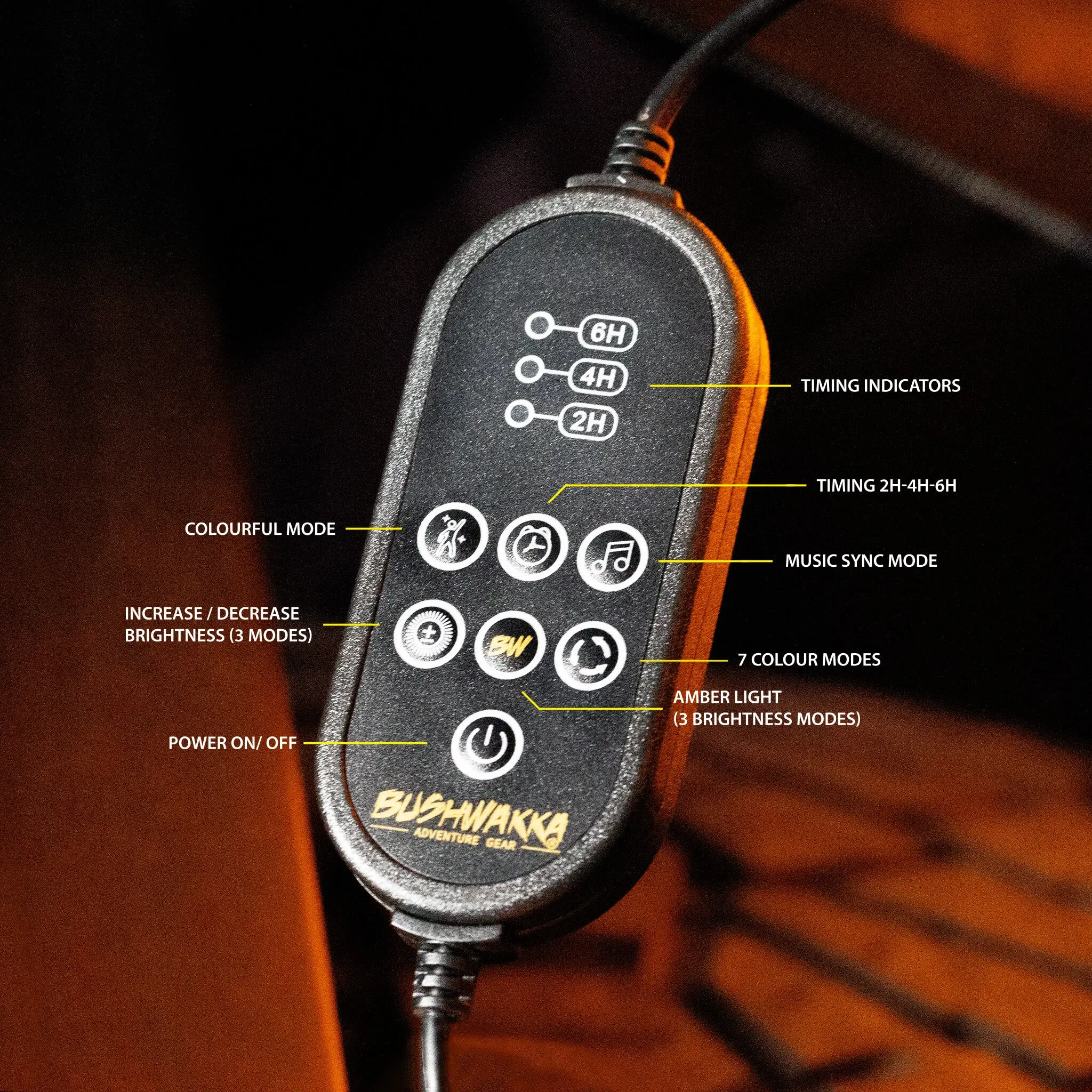

| Lighting Control: | Wireless remote control & multi-functional RGB controller |
| Mounting Hardware: | 304 stainless steel bolts & nuts (10 x M8) |
| Brackets: | 2 x standard L-brackets |

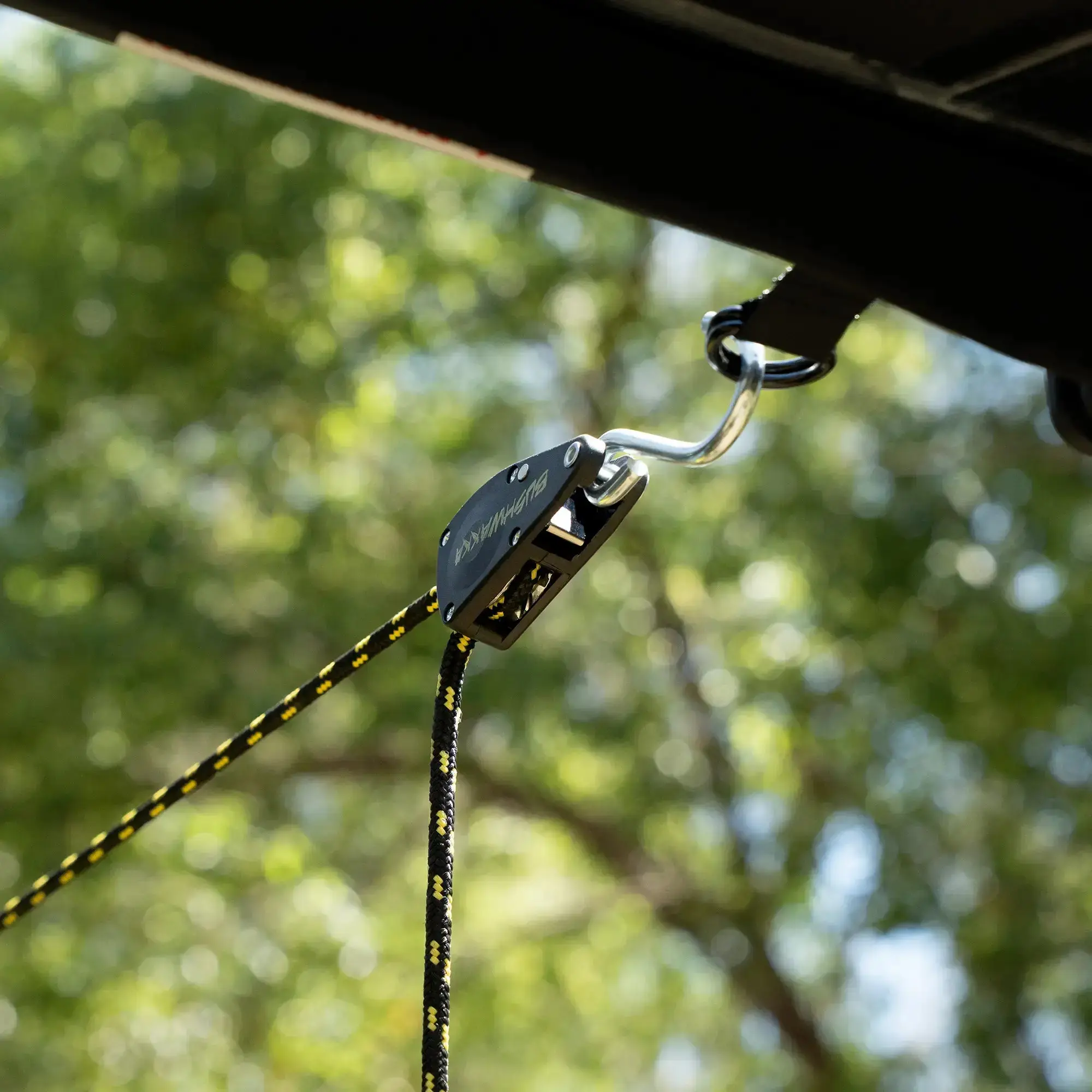

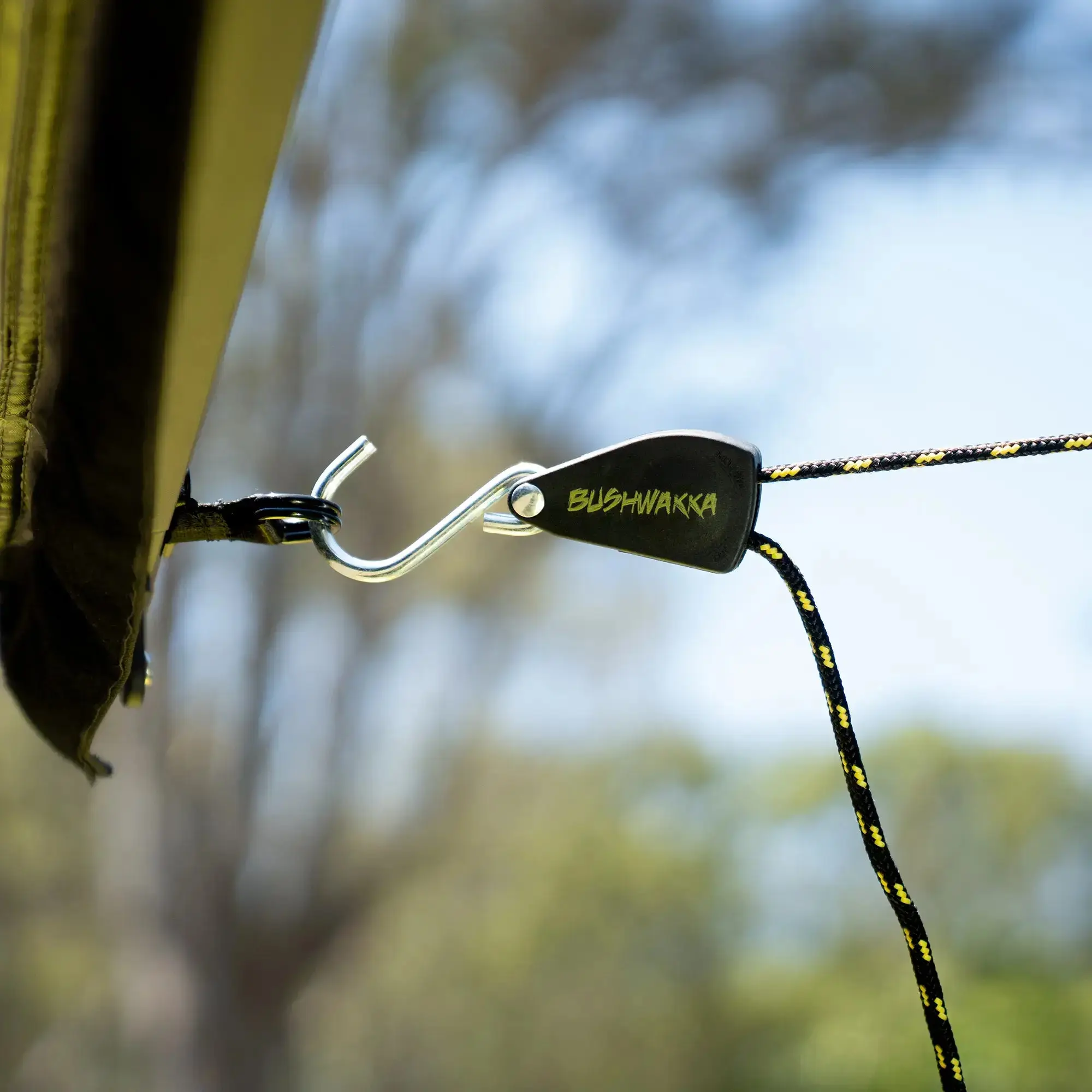

| Support System: | 2 x tensioning ratchet ropes |
| Ground Kit: | 4 x pegs & 4 x guy ropes |
| Power Cable: | 12V cigarette socket plug-and-play cable (5m dual split) |
| Storage: | Heavy-duty PVC awning bag |
| Extras: | Full accessory repair kit & ratchet spanner |
| SPECIFICATIONS | |
| Model: | 180 XL Squared Pro Awning |
| Coverage Area: | 12 sqm |
| Weight (On Vehicle): | 30 kg |
| Bag Dimensions: | 250 x 20 x 20 cm |
| Lighting: | Multi-functional RGB with dimming, strobe, pulse & sound-reactive modes |
| Fabric Rating: | UVE95+% rating |
| Frame / Build: | ENDO frame, engineered hinge system, reinforced arm guards |
| Mounting System: | Integrated sail track for accessories |
| Mounting: | Suitable for mounting on left hand side or right hand side of vehicle |
| OPTIONAL ACCESSORIES | |
| Compatible with Bushwakka wall kits, enclosures, and organiser systems. The legs are height adjustable and can be repositioned across multiple attachment points for added stability in windy conditions, with a full set recommended when using wall kits. Additional spigot twist-lock bow-end legs are available to purchase, and the 180 XL Squared Pro awning can support up to 6. |
|
| * Please note: storing more than 4 legs in the awning bag can make it difficult to zip, so correctly folding and rolling the canvas is essential. | |

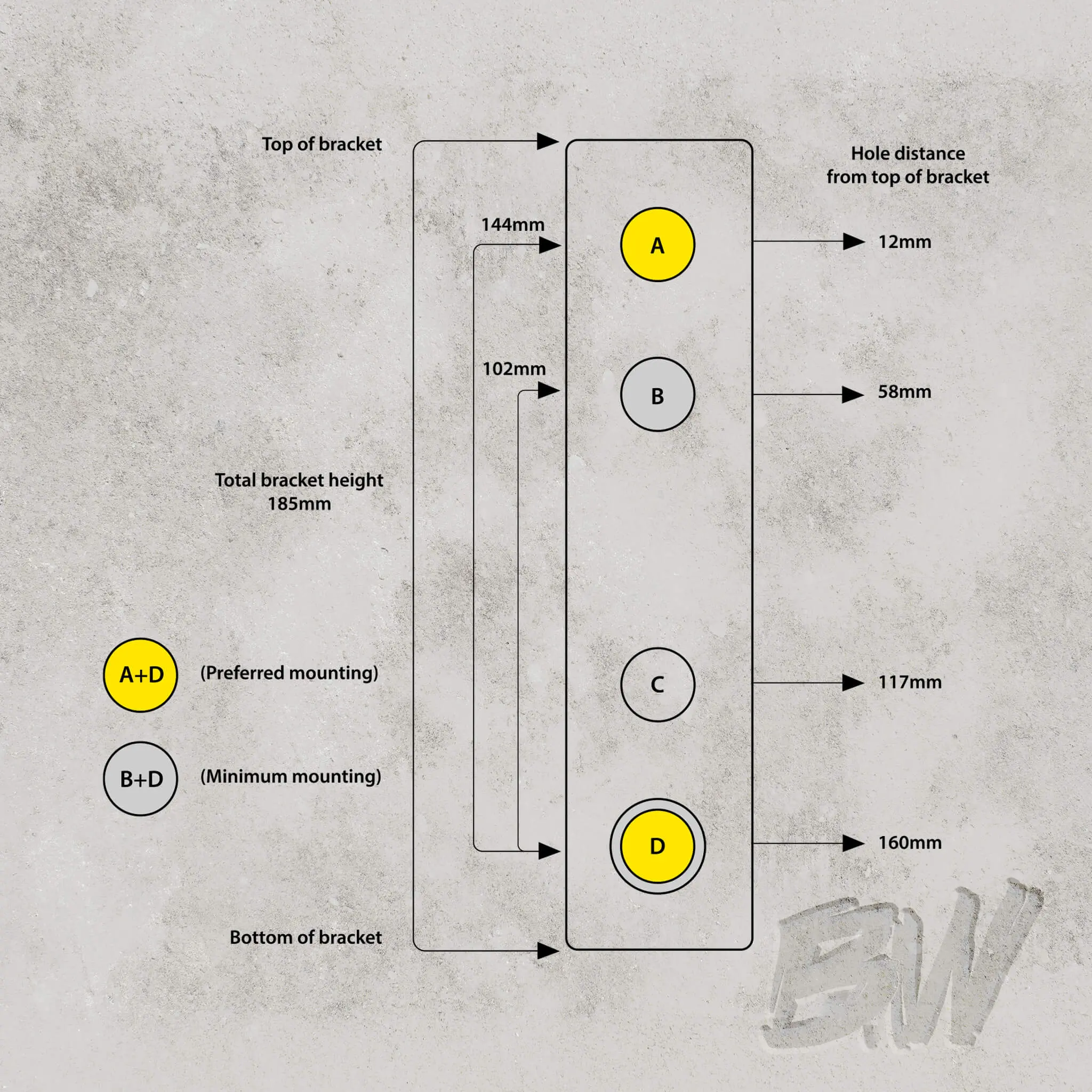

| MOUNTING REQUIREMENTS | |

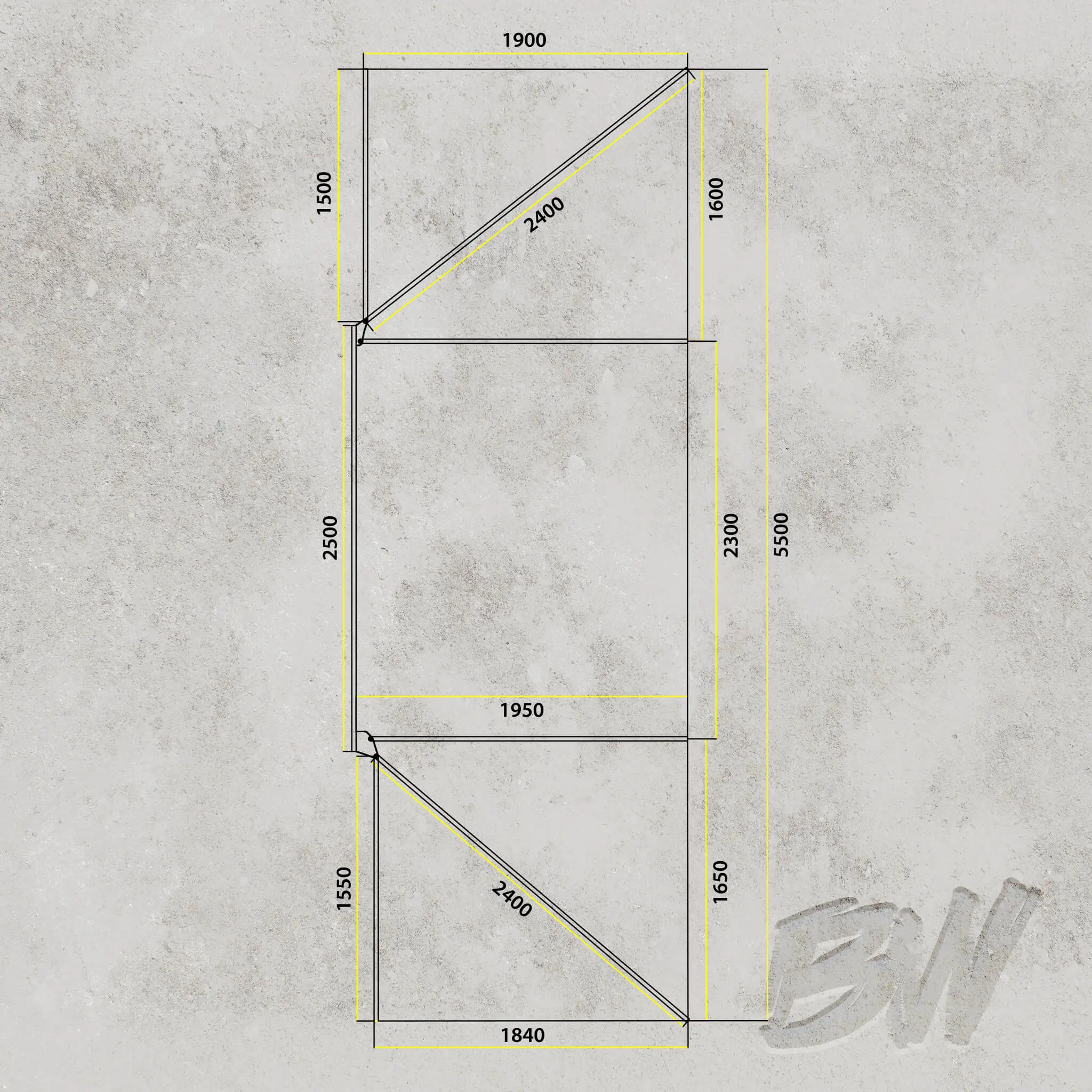

| Requires a minimum of 1600 mm distance between mounting brackets for full freestanding functionality. Use supplied brackets or Bushwakka-approved heavy-duty adjustable T-brackets to ensure correct fitment and maintain warranty compliance. |
| INSTALLATION SERVICE AVAILABLE | |
| Bushwakka offers professional installation services for awnings and rooftop tents at our Gold Coast HQ. Learn more or contact us at (07) 5515 7912, extension #1 for availability. |
| PATENT PENDING | |
| The 180 XL Squared Pro Awning features innovative and industry leading designs that are patent pending. | |
| INSTALLATION GUIDE | |
| Need help with installation? View the Awning Installation Guide | |
| WARRANTY NOTE | |
| Note: Bushwakka Adventure Gear reserves the right to deny a Warranty Claim if correct mounting distances or load-rated brackets are not used. We recommend supplied or approved brackets (ALL Accessories → Mounting Brackets) to remain within warranty parameters. |
